PDR790W — 944031462 73

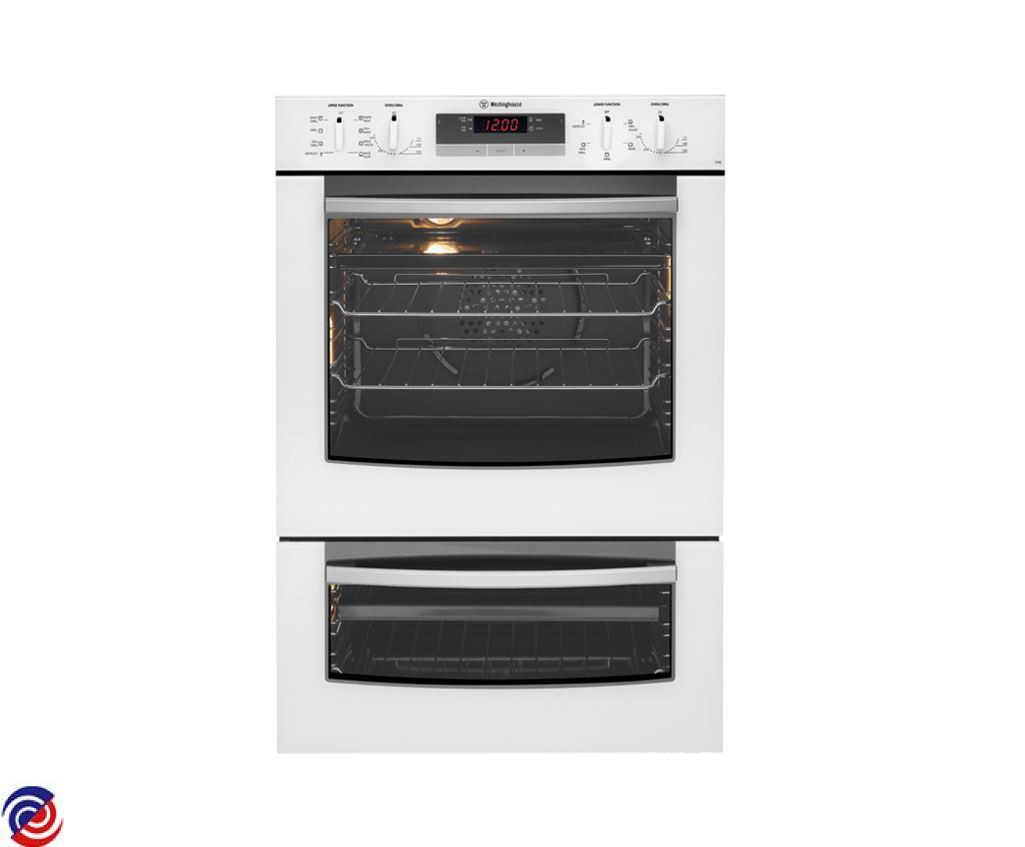

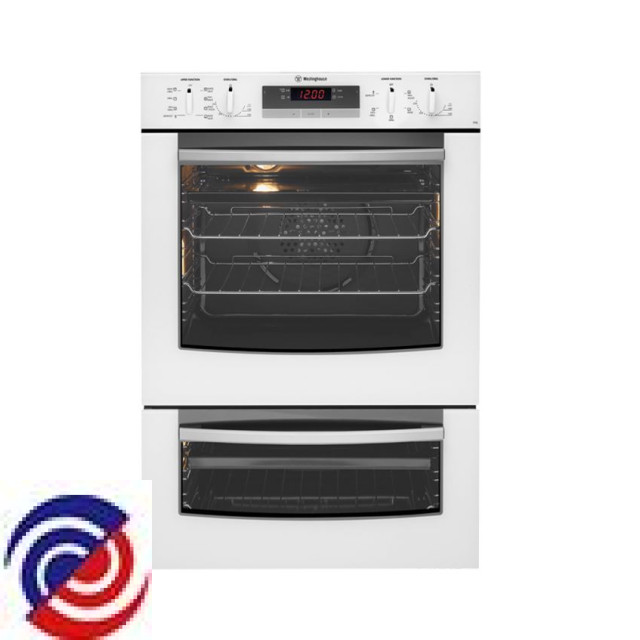

WESTINGHOUSE — Cooker Electric

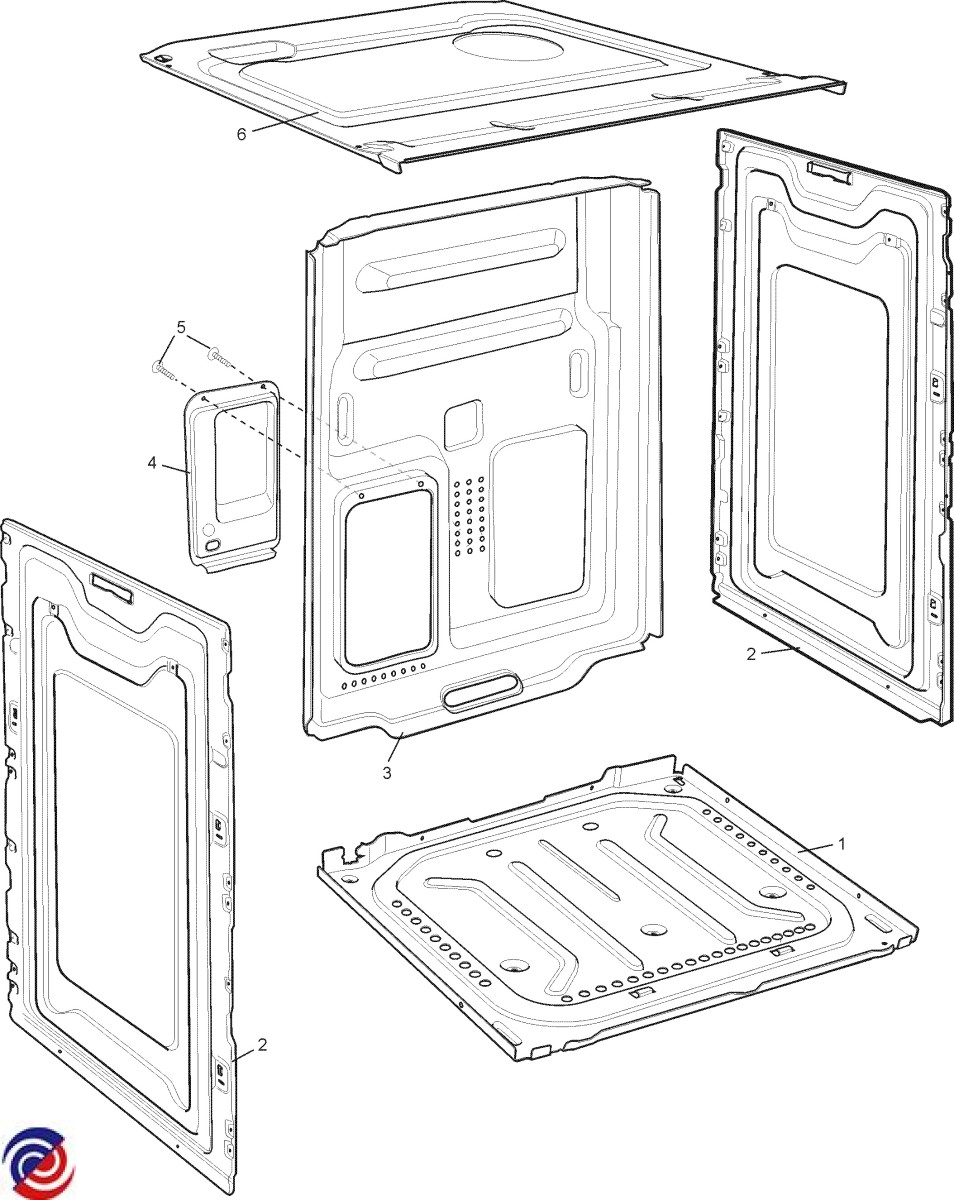

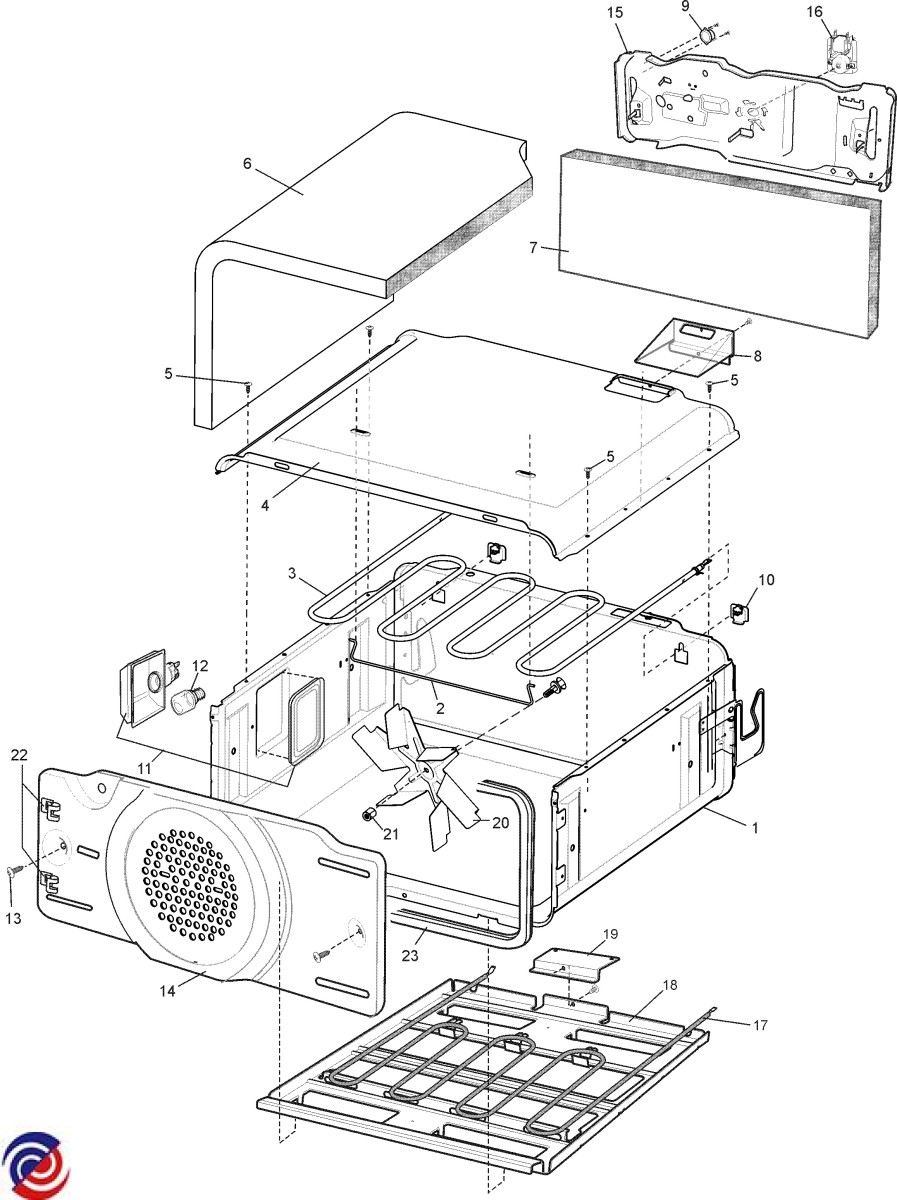

Parts for PDR790W
.JPG)
W0011297 BLADE FAN
W0011319 COVER GRILL DISH
W0011401 DISH GRILL ENAM F/WIDTH BIOS
W0011995 NUT M6 LH FAN MOTOR
.JPG)
W0012256 ELEMENT GRILL/BOOST 3000W
W0012262 ELEMENT FAN RING 2200W
W0012263 ELEMENT C/HEAT 1800W NO EARTH
$95.00
W0012570 END CAP HANDLE BLK WEST NGD
$14.05
W0012728 SEAL DUO OVEN BIOS
W0012988 SPACER HANDLE GLS DR NGD
W0013564 SWITCH MULTI 5
W0013565 SWITCH MULTI 8
.JPG)
W0013590 SWITCH THERMAL CUT OUT 145 DEG
.JPG)
W0013596 SWITCH THERMAL CUT OUT 190 DEG
W0013619 TRIM DOOR LOWER
W0014025 SCREW #8-10X35 PAN PH2 P/B BK
$4.50
W0014032 SCREW #8 X 45 PAN QUADREX
W0014040 SCREW 3/16X28 PAN PH TRILOB ZY
.JPG)
W0022968 HINGE DOOR
W0023085 HINGE DOOR GRILL
$64.25
.JPG)
W0046406 CLIP MOUNTING ELEMENT
.JPG)
W0050309 LAMP
_1.JPG)
W0050403 MOTOR FAN OVEN
W0052258 DOOR OVEN INNER GLASS
.JPG)
W0052585 CANOPY FAN ASSY U/B NGD
.JPG)
W0053530 SHELF OVEN
.JPG)
W0057771 THERMOSTAT OVEN
W0058493 TRIM DOOR UPPER VENTED
W0062412 LIGHT INDICATOR INC RED LENS
.JPG)
W0063564 CLOCK 3 BUTTON ECOTIME TOUCH
.JPG)
W0065076 CLIP BULB THERMOSTAT ELEC
$6.70
W0147339 SEAL OVEN MODULAR PROFILE
W0166032 LAMP 25W SES E14 300C CLEAR
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011227 KNOB CONTROL WHT
$19.00
W0011262 PLATE MOUNTING SWITCH
$14.90
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011448 DOOR GRILL OUTER GLASS
$99.00
W0011449 DOOR OVEN GLASS OUTER WHT
W0011667 PANEL FAN COVER CAT BIOS
W0011837 HINGE DOOR
W0011856 SUPPORT ELEMENT
W0012081 DUCT FLUE OVEN DUO BIOS
$12.95
W0012315 CLIP THERMOSTAT BIOS
$9.00
W0012562 MOUNT CAP F/FRAME R/H NGD
$5.80
W0012563 MOUNT CAP F/FRAME L/H NGD
$7.55
W0012838 DOOR OVEN INNER GLASS
$121.85
W0012849 DOOR OVEN INNER GLASS MIDDLE
W0013260 SHIELD WIRING
$11.95
W0013325 INSUL OVEN BACK DUO 13MM THICK
W0013456 GRILL BOX ENAM DUO
$181.50
W0013595 THERMAL CUT OUT 90 DEG N.O.
W0013625 FRAME CONTROL PANEL
W0013662 DUCT GRILL DUO ASSY NGD
$7.70
W0013730 BUMPER STOP BLK
$6.55
W0013934 LINER GRILL LCD KIT OF 2
$76.00
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014023 SCREW #8 X 5/8 CSK #2PH AB BK
$4.50
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014079 BUSH MOUNT F/FRAME NGD
$7.25
W0027201 FRAME FRONT ENAM DUO NGP
$79.20
W0036213 SUPPORT ELEMENT GRILL
W0038118 COVER RETAINING LATCH
$10.95
W0038121 COVER CLEAN HEAT FULL GALV BIO
W0038807 BRACKET CLEANHEAT MNT DUO BIOS
W0039242 TRAY BAKING PREMIUM ENAM BIOS
W0039639 BASEPLATE
W0039640 PANEL UPPER
W0039686 PANEL CHASSIS TOP
$27.50
W0039689 PNL GRILL TOP DUO ENAM BIOS
W0041122 PANEL FAN COVER DUO CAT BIOS
$45.05
W0042655 CHANNEL FRONT NGP DUO LH
W0042656 CHANNEL FRONT NGP DUO RH
W0042968 HANDLE DOOR
W0046264 ELEMENT 1000W CLEAN HEAT
W0047469 SCREW M4 X 5 PAN #2 PH SML HD
$4.50
W0050303 LAMP ASSY OVEN SIDE
W0052236 DOOR OVEN INNER GLASS
W0052270 PANEL CONTROL GLASS & CLIPS
$49.50
W0053529 RACK SIDE SUPPORT OVEN EVOLVE
W0053531 RACK SIDE SUPPORT GRILL W/O
W0054645 INSULATION OVEN CABINET
W0054658 INSULATION OVEN CABINET
W0054671 INSULATION OVEN REAR
$18.70
W0056272 BRACE OVEN REAR BI BIOS
W0057755 SWITCH THERMAL CUT OUT 120 DEG
W0059831 DUCT GRILL W/O BIOS
W0063343 LINER OVEN PR INC LIGHT C/OUT
