WFE647SA — 940001827 19
WESTINGHOUSE — Cooker Electric

W0011297 BLADE FAN

W0011319 COVER GRILL DISH

W0011404 TRAY SCONE

$19.90

W0011922 HANDLE DOOR

$32.10

W0011995 NUT M6 LH FAN MOTOR

W0012254 ELEMENT C/HEAT 1800W SS321

W0012262 ELEMENT FAN RING 2200W

W0012326 CLIP MOUNTING ELEMENT

W0012570 END CAP HANDLE BLK WEST NGD

$14.05

W0012990 SPACER HANDLE BLK FRESCO

$10.25

W0013596 SWITCH THERMAL CUT OUT 190 DEG

W0013702 TIMER 120 MINUTE WESTLAKE

W0013750 LENS INDICATOR LIGHT

$11.20

W0014040 SCREW 3/16X28 PAN PH TRILOB ZY

W0022807 HINGE DOOR OVEN

W0023241 HOLDER LAMP ASSY BIOS

W0027342 GRILL DISH GIO ENAMEL

$105.45

W0029488 GRILL GRABBER FORTE

$4.50

W0029889 PNL OUT OV DR ASY 600FC SS WES

W0050403 MOTOR FAN OVEN

W0053487 SHELF OVEN 473 X 378MM

W0054725 SCRAPER CERAMIC GLASS

W0057166 CHEF SIMPSON WESTINGHOUSE COOKTOP CONTROL SWITCH MP101

W0057184 SWITCH INF HEAT MDP 102 EA

W0057210 SWITCH AUXILIARY T/STAT

W0057771 THERMOSTAT OVEN

W0112562 ELEMENT D180/1800W/230V

W0147339 SEAL OVEN MODULAR PROFILE

W0154310 PROTECTOR CERASEAL GLASS CT

$9.90

W0154311 CLEANER CERAMIC CERAPOL 250ML

$9.90

W0166032 LAMP 25W SES E14 300C CLEAR

W0011114 TERMINAL BLOCK W/EARTH BIOS

W0011264 PLATE CVR TERM ELEC BIOS

$13.85

W0011383 BRACKET SUPPORT GRILL BOX R/H

$14.30

W0011384 BRACKET SUPPORT GRILL BOX L/H

$14.30

W0011388 SYNC GRILL SLIDE HANDLE FRESCO

$49.65

W0011389 BRACKET STABIL. BOLT ASSY FRES

$19.85

W0011454 PNL OUT GR DR ASSY 600 SM SS

$192.90

W0011514 PANEL SIDE SS VINYL FRESCO

$125.30

W0011523 PANEL COVER WIRE 600 S/G FRESC

$39.10

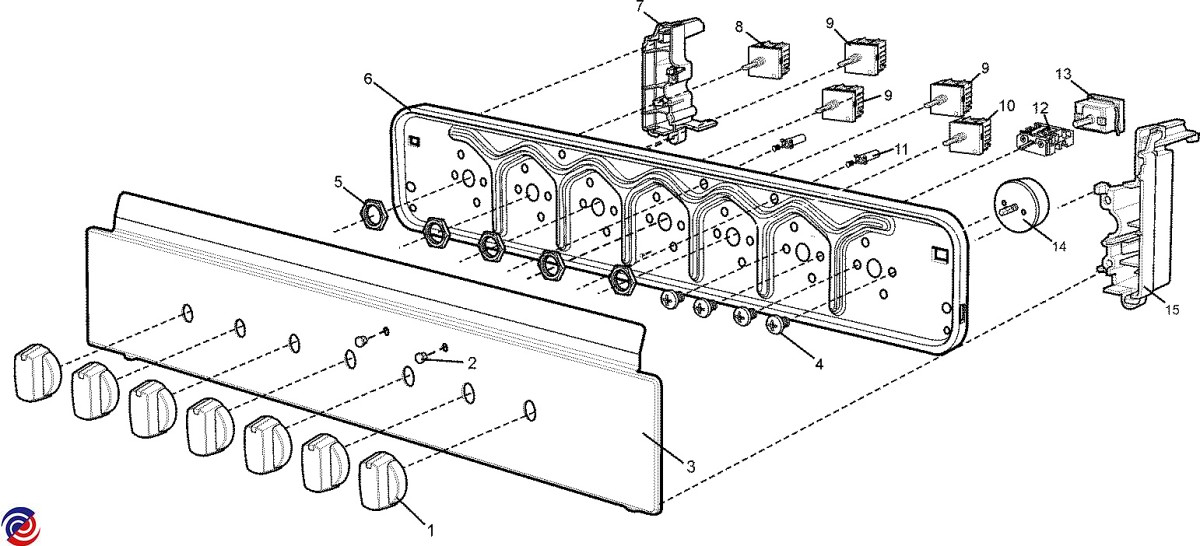

W0011628 PANEL CONTROL SCREEN WFE647SA

$145.05

W0011666 COVER FAN & ELEMENT

$95.75

W0011700 PANEL SPLASHBACK 600 SS FRESCO

$36.95

W0011845 HINGE GR DOOR 540 FRESCO PH2

$7.70

W0011846 HINGE GR DOOR 540 FREE FRESCO

$53.85

W0012064 F/FRONT PAINT 600FC FRESCO S/G

$66.00

W0012315 CLIP THERMOSTAT BIOS

$9.00

W0012417 SUPPORT COUNTER FRESCO

$7.05

W0012880 GLASS OV DR INNER 600 FRESCO

$96.35

W0012911 CANOPY GRILL ELEC FRESCO

$27.50

W0013260 SHIELD WIRING

$11.95

W0013263 SHIELD SPILLAGE

$17.45

W0013328 INSULATION OVEN BACK - KNAUF

$20.30

W0013336 INSULATION GRILL BACK ELEVATED

$14.30

W0013342 INSUL GRILL CANOPY TOP FRESCO

$14.30

W0013467 OVEN BRACE 600UP ASSY FRESCO

$24.85

W0013628 TRIM DOOR TOP VENT 600 FRESCO

$31.90

W0013731 BUMPER STOP GREY

$5.05

W0014019 SCREW #6X3.5X28 HILO PAN PH

$4.50

W0014022 SCREW #10-16X5/8 PAN PH2 BLK

$4.50

W0014026 SCREW #8 X 5/16 CSK #2PH AB BK

$4.50

W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK

W0014030 SCREW #8 X 8MM HEX/MULTI

$4.50

W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK

$4.50

W0014041 SCREW #8 x1/2 PH2 MUSH WASHER

$4.50

W0021318 SCREW M4X5 PHIL HZ

W0021330 NUT METRIC M10 X 0.75MM

W0021545 SPRING ELE CER GLOHO 540 EX HZ

$6.60

W0021773 PLT MTG SWTCH MULTI 7 SGO FRES

$14.30

W0021778 CERAMIC UNIT INDICATOR SHIELD

$11.00

W0021779 INDICATOR 4 HOTZONE T180

$17.10

W0021780 PANEL BASE 600 GIO

$168.50

W0021782 SWITCH MTG PLATE ADAPTER LH FR

$22.00

W0022171 FOOT LEVELING

$16.35

W0022696 COVER LAMP SIGNAL RED

$15.00

W0029591 KNOB W/HOUSE 600FC S/S ELEC

W0029662 ANTI TILT PLATE

$15.65

W0029831 BRACE LOWER 600UP

W0035788 DEFLECTOR HEAT GRILL UC20

W0041134 PANEL KICK 600 RFP FRESCO

W0043118 PANEL REFLECTOR GRILL TOP

W0044830 FLUE DUCT OVEN ELEC 540 BIOS

W0047180 SUPPORT GRILL ELEMENT

W0048105 ENDCAP C/PANEL FRESCO S/S LHS

W0048106 ENDCAP C/PANEL FRESCO S/S RHS

W0054672 INSULATION OVEN WRAP - KNAUF

$63.85

W0064527 SCREW NO 8 X 12 MM PD

$4.50

W0102438 GLASS&BKT ASSY 600FC FRES S/S

W0105318 SCREW

$7.35

W0112555 ELEMENT CERAM DIA165 1200W EGO

W0114705 ELEM CER 230 D 2200/750W (S/L)

W0154046 SLIDER GRILL DOUBLE ACTION LH

$44.00

W0154047 SLIDER GRILL DOUBLE ACTION RH

$44.00
