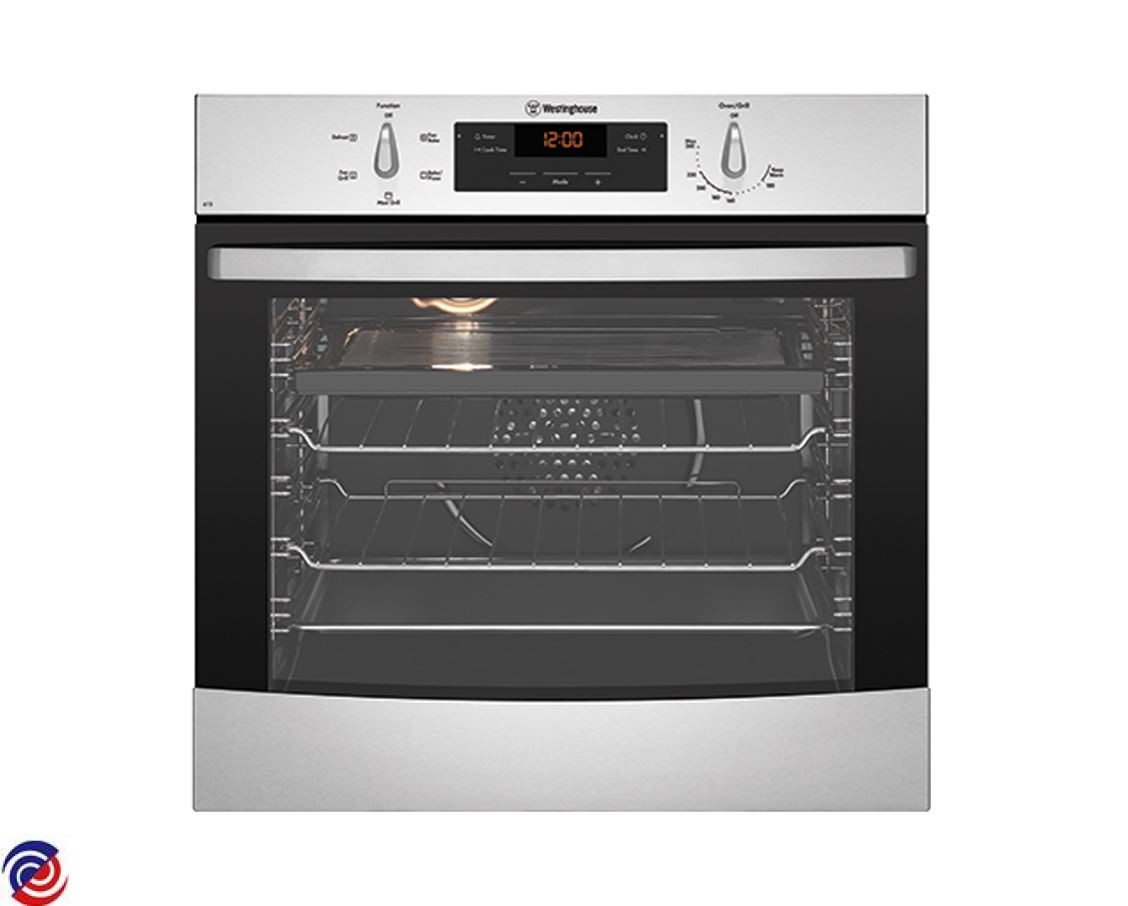

WVE615S — 944031684 32
WESTINGHOUSE — Cooker Electric
Parts for WVE615S
W0011237 KNOB ASSY WH BLDE SILVER FORTE
W0011401 DISH GRILL ENAM F/WIDTH BIOS
W0011406 TRAY BAKING SCONE - 468MM X 360MM
W0011932 HANDLE DR NP WEST ANOD FORTE
W0011995 NUT M6 LH FAN MOTOR
.JPG)
W0012256 ELEMENT GRILL/BOOST 3000W
W0012262 ELEMENT FAN RING 2200W
.JPG)
W0012326 CLIP MOUNTING ELEMENT
W0012886 GLASS OV DR IN WEST FORTE
W0013564 SWITCH MULTI 5
.JPG)
W0013596 SWITCH THERMAL CUT OUT 190 DEG
.JPG)
W0013597 THERMAL CUTOUT 120 DEG N/C 16A
.JPG)
W0013966 WESTINGHOUSE OVEN CLOCK PCB 3 BUTTON TOUCH BF11
$126.00
W0014032 SCREW #8 X 45 PAN QUADREX
.JPG)
W0022966 HINGE DOOR
.JPG)
W0030130 TRIM DOOR TOP CAP NGD
W0030434 SEAL OVEN MODULAR PROFILE
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
_1.JPG)
W0050403 MOTOR FAN OVEN
.JPG)
W0057771 THERMOSTAT OVEN
W0271174 IMPELLER OVEN FAN 160 MM
W0275063 LAMP OVEN ROUND PYRO BIOS
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011321 COVER BASE PANEL SHIELD BIOS
$29.70
W0011479 PANEL TOP PYRO NGP
$43.20
W0011484 PANEL SIDE RH
$28.00
W0011485 PANEL SIDE LH
$27.50
W0011515 PANEL COVER WIRE UB 40MM
$24.20
W0011666 COVER FAN & ELEMENT
$95.75
W0011856 SUPPORT ELEMENT
W0011882 CHANNEL FRONT NGP UB RH
$16.90
W0012519 SCREW M4X5 HEX1/4' PH2 BLK ZP
$4.50
W0012578 STAND-OFF NON-PYRO WEST FORTE
W0013260 SHIELD WIRING
$11.95
W0013461 BRACE OVEN REAR B/I BIOS
$24.85
W0013730 BUMPER STOP BLK
$6.55
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0022643 SCREW M4 X 4
W0027190 FRAME FRONT PAINTED ELE UB NGP
$62.95
W0027370 SCREW M4 X 25 PAN MTS PHIL BLK
$1.70
W0030193 PLATE MTG SW CLOCK CHEF SELECT
$72.55
W0030352 FAN COOLING ASSY RADIAL 11W
W0030606 INSULATION OVEN BACK - KNAUF
$15.55
W0030648 PNL CNT & CLIPS WVE615S SELECT
W0038118 COVER RETAINING LATCH
$10.95
W0039639 BASEPLATE
W0042653 CHANNEL FRONT NGP UB LH
W0042768 PLUG DOME MDP16
W0053490 RACK GRILL INSERT
W0054672 INSULATION OVEN WRAP - KNAUF
$63.85
W0064527 SCREW NO 8 X 12 MM PD
$4.50
W0147404 LIGHT INDICATOR AMBER LENS
W0154077 ENDCAP CONTROL PANEL CHEF LHS
W0154078 ENDCAP CONTROL PANEL CHEF RHS
W0154118 PNL OV DR OUT ASS S/S FORTE
W0283441 COVER CLEAN HEAT
$9.65
W0284067 CLIP THERMOSTAT BIOS
$4.50
W0284439 RACK PACK WH UB V2 E100
W0284441 ELEMENT BASE 1000W E100
