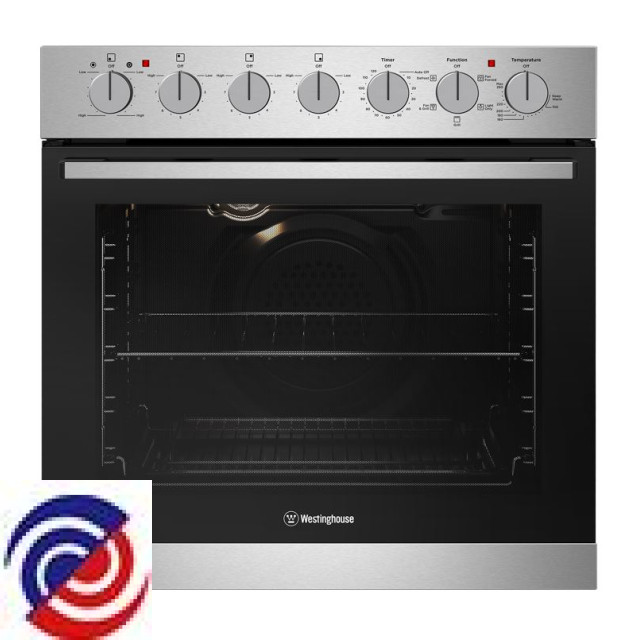

WVE645SC — 944031843 04
WESTINGHOUSE — Cooker Electric
Parts for WVE645SC
.JPG)
W0011112 ELEM CERAM 200 DIA 1800W (EGO)
W0011995 NUT M6 LH FAN MOTOR
.JPG)
W0012255 ELEMENT GRILL 2200W SS321
W0012262 ELEMENT FAN RING 2200W
.JPG)
W0012326 CLIP MOUNTING ELEMENT
W0012886 GLASS OV DR IN WEST FORTE
W0013564 SWITCH MULTI 5
.JPG)
W0022966 HINGE DOOR
.JPG)
W0030130 TRIM DOOR TOP CAP NGD
W0030434 SEAL OVEN MODULAR PROFILE
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
_1.JPG)
W0050403 MOTOR FAN OVEN
.JPG)
W0057771 THERMOSTAT OVEN
W0112558 ELEMENT 165 MM 1200W
W0271174 IMPELLER OVEN FAN 160 MM
W0274109 SWITCH INF/HEAT EGO SINGLE
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011480 PANEL TOP COMBO NGP
W0011484 PANEL SIDE RH
$28.00
W0011485 PANEL SIDE LH
$27.50
W0011666 COVER FAN & ELEMENT
$95.75
W0011882 CHANNEL FRONT NGP UB RH
$16.90
W0013260 SHIELD WIRING
$11.95
W0013461 BRACE OVEN REAR B/I BIOS
$24.85
W0013730 BUMPER STOP BLK
$6.55
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.50
W0021318 SCREW M4X5 PHIL HZ
W0022643 SCREW M4 X 4
W0023044 LAMP RESIDUAL HEAT
$16.70
W0023045 SPRING BASE
$11.95
W0027190 FRAME FRONT PAINTED ELE UB NGP
$62.95
W0029339 INDICATOR LIGHT- 600MM PIGGY
$15.65
W0030004 SUPPORT ELEMENT GRILL BIOS
$7.00
W0030352 FAN COOLING ASSY RADIAL 11W
W0030606 INSULATION OVEN BACK - KNAUF
$15.55
W0038817 BRACKET TOP PANEL
W0039639 BASEPLATE
W0042653 CHANNEL FRONT NGP UB LH
W0064527 SCREW NO 8 X 12 MM PD
$4.50
W0154077 ENDCAP CONTROL PANEL CHEF LHS
W0154078 ENDCAP CONTROL PANEL CHEF RHS
W0275732 SWITCH INF/HEAT EGO DUO
W0283213 SCREW M4 X 44 PAN T20
W0283463 BAG CONTAINING SCREWS BUILTINS
$4.50
W0283485 RACK SIDE OVEN EASY RH E100
W0283486 RACK SIDE OVEN EASY LH E100
W0283545 INSULATION OVEN WRAP - KNAUF
W0284064 CLIP SIDEGRIDS
$4.50
W0284067 CLIP THERMOSTAT BIOS
$4.50
W0284351 DISH GRILL ENAM E100
$78.10
W0360861 PNL OV DR OUT ASS S/S ASPIRE
W0361516 .HEATER D210/2200W/240V³
W0361768 GLASS&BKT ASSY 60CM COMBO
W0361836 LENS SQUARE AMBER
W0361860 LAMP OVEN ROUND DIA 48
W0361877 WIRE HARNESS CER COMBO MAIN
$71.15
W0361991 KNOB ASSY PAINTED ASPIRE
$17.40
W0361994 SPACER MF SWITCH ASPIRE
W0362084 PNL OV DR OUT ASS WHT ASPIRE
W0362115 RACK SHELF OVEN W/HOUSE
W0362116 RACK SHELF STEP DOWN W/HOUSE
W0362117 ENDCAP HANDLE EXTRUDED ASPIRE
$17.40
W0362118 HANDLE DOOR EXTRUDED ASPIRE
$9.60
W0362140 RACK INSERT GRILL DISH ASPIRE
W0362353 RACK PACK UB V3 ASPIRE
W0370382 CONTROL PANEL, SCREEN, 7 KNOB
$91.25
W0370645 Timer,cut-out, 2HR WESTLAKE
$66.00
