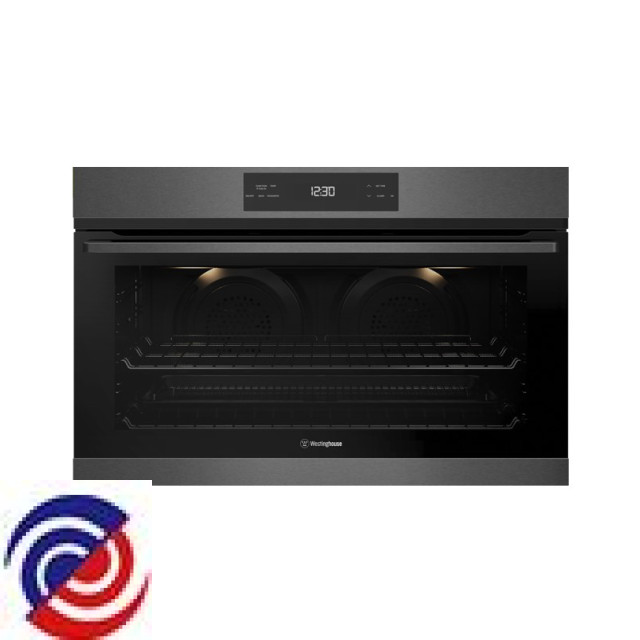

WVE915DSCA — 944031884 00
WESTINGHOUSE — Cooker Electric
Parts for WVE915DSCA
W0011995 NUT M6 LH FAN MOTOR
W0012266 ELEMENT FAN RING 1200W VULCAN
.JPG)
W0012326 CLIP MOUNTING ELEMENT
W0012730 GASKET CAVITY OVEN
W0012755 MOTOR FAN OVEN
W0013970 RELAY 30A SINGLE POLE 240V
W0023144 POWERBOARD OVC3000 - EOS
$271.70
W0030169 ELEMENT GRILL SPLIT ELUX VUL
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
_1.JPG)
W0050403 MOTOR FAN OVEN
W0271174 IMPELLER OVEN FAN 160 MM
W0274167 SENSOR TEMPERATURE PT500 575MM
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011201 SUPPORT ELEMENT GRILL VULCAN
$25.20
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011345 BRACKET KRONOS PROBE MOUNT BIO
$12.60
W0011477 PNL DECK GLUE 35W MOTOR VULCAN
$87.90
W0011502 PANEL BOTTOM BUILTIN VULCAN
$49.50
W0011507 PANELTOP BUILTIN VULCAN
$58.55
W0011695 PANEL FAN COVER
$112.55
W0011996 NUT M6 R/H FAN MOTOR
$5.30
W0012415 SUPPORT COUNTER LH
$9.35
W0012416 SUPPORT COUNTER RH
$9.35
W0012519 SCREW M4X5 HEX1/4' PH2 BLK ZP
$4.50
W0012642 HARNESS K2 INTERFACE VULCAN
W0013260 SHIELD WIRING
$11.95
W0013463 BRACE OVEN REAR VULCAN
$27.50
W0013649 GROMMET BUILTIN VULCAN
$8.00
W0013730 BUMPER STOP BLK
$6.55
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.50
W0014079 BUSH MOUNT F/FRAME NGD
$7.25
W0029800 MOTOR FAN COOLING VULCAN
$101.70
W0029930 GLASS OV DR MID 2 COBRA
W0275756 PANEL RH SIDE BUILTIN VULCAN
$24.85
W0275757 PANEL LH SIDE BUILTIN VULCAN
$24.85
W0275765 IMPELLER OVEN FAN VULCAN R/H
$24.85
W0276525 VENT DOOR TOP CAP ASSY VULCAN
W0283213 SCREW M4 X 44 PAN T20
W0283381 INSULATION OVEN WRAP STD COBRA
$42.40
W0283485 RACK SIDE OVEN EASY RH E100
W0283486 RACK SIDE OVEN EASY LH E100
W0283609 CLEAN HEAT COVER E100 90CM
W0283672 INSULATION OVEN BACK E100 90CM
$16.65
W0283877 HANDLE PEDES TAUR+ 90CM ASPIRE
W0284064 CLIP SIDEGRIDS
$4.50
W0284292 HINGE STD 11.9 KG 3 LAY VULCAN
W0284345 ELEMENT C/H 1800W VULCAN E100
W0284381 GLASS OV DR INNER VULCAN
W0295025 LAMP OVEN HALOGEN 25W
$26.05
W0361679 SENSOR TOUCH SELCT NO BACKLIT
$75.00
W0361862 COVER VCU+ SIDE TOUCH
W0361863 HOUSNG RFLCT VCU+ SDE RGHT BLK
$4.50
W0361864 HOUSNG RFLCT VCU+ SDE LEFT BLK
$4.50
W0361882 PANEL BACK BUILTIN E100 90CM
$34.40
W0361884 INSULATOR SPILL IOI VULCAN
$4.50
W0362004 HANDLE TAUR+ 90 ASPIRE DARK
$55.40
W0362141 RACK INSERT ASPIRE 90CM
W0362179 RACK PACK ASPIRE 90CM
$139.30
W0362180 DISH GRILL ENAM DEEP ASPIRE 90
$81.60
W0363855 KIT PNL CTL ASSY WVE915DSCA
$151.70
W0364569 FRAME FRONT ENAMEL B/I VULCAN
W0364659 PNL OV DR OUT ASSY NPYRO DARK
W0364678 CONTROL VCU+PRG WVE915
