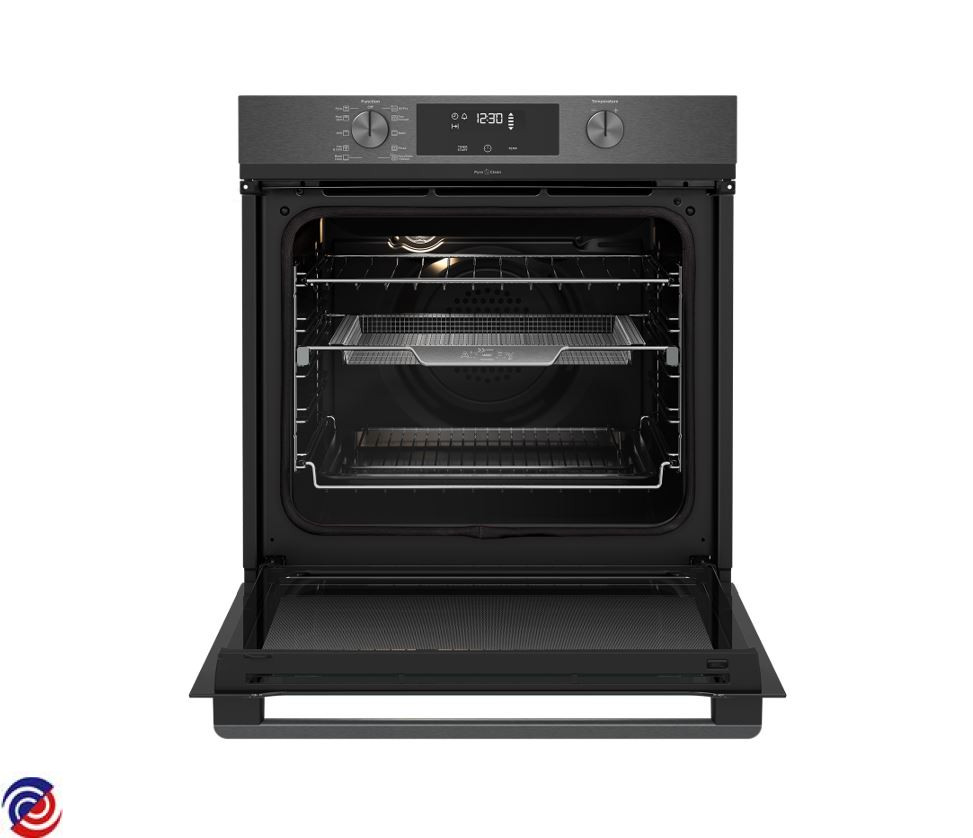

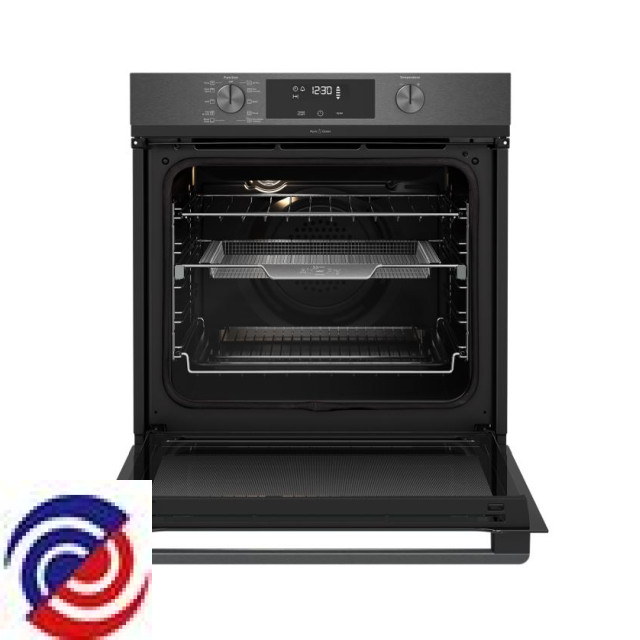

WVEP617DSC — 944031822 02
WESTINGHOUSE — Cooker Electric
Parts for WVEP617DSC
W0011406 TRAY BAKING SCONE - 468MM X 360MM
W0011995 NUT M6 LH FAN MOTOR
W0012261 ELEMENT G/BOOST 3000W - PYRO
W0012262 ELEMENT FAN RING 2200W
.JPG)
W0012326 CLIP MOUNTING ELEMENT
.JPG)
W0013597 THERMAL CUTOUT 120 DEG N/C 16A
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
_1.JPG)
W0050403 MOTOR FAN OVEN
W0271174 IMPELLER OVEN FAN 160 MM
W0274167 SENSOR TEMPERATURE PT500 575MM
W0283888 POWERBOARD OVC-R5000 SC
W0361856 DOOR LOCK ASSEMBLY (GLOBAL)
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011321 COVER BASE PANEL SHIELD BIOS
$29.70
W0011345 BRACKET KRONOS PROBE MOUNT BIO
$12.60
W0011368 BRACKET HINGE SUPT APOLLO
$22.90
W0011666 COVER FAN & ELEMENT
$95.75
W0011857 SUPPORT ELEMENT
$12.80
W0011882 CHANNEL FRONT NGP UB RH
$16.90
W0012325 RETAINER PYRO CATALYSE NGP
$11.30
W0012726 SEAL OVEN DOOR PYRO BIOS
W0012863 GLASS OVEN DOOR INNER PYRO NGP
W0012864 GLASS OVEN DOOR MID PYRO NGP
W0012997 SPACER RUBBER GLASS NGP
$8.15
W0013184 JUG MEASURING STEAM
$16.60
W0013242 PIPE WATER DRAIN ASSY
$29.05
W0013260 SHIELD WIRING
$11.95
W0013343 INSULATION OVEN BACK PYRO BIOS
W0013461 BRACE OVEN REAR B/I BIOS
$24.85
W0013666 DUCT PLATE TOP PYRO NGP
$14.85
W0013730 BUMPER STOP BLK
$6.55
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.50
W0014081 BUSH MOUNT F/FRAME V2 NGD
$5.05
W0022980 SHUTTLE +/-
$10.90
W0026349 HOUSING CENTRERING HELP
W0027300 COOLING FAN MOTOR ASSEMBLY
W0029631 CAP MOUNT F/FRAME 40MM RUBY LH
$4.50
W0029632 CAP MOUNT F/FRAME 40MM RUBY RH
$17.00
W0030457 PANEL SIDE UB BIOS RH
$49.15
W0030458 PANEL SIDE UB BIOS LH
$49.15
W0030494 PANEL BASE BIOS 0.5MM
$38.35
W0030563 SCREW M4X0.7-25 TX20 BLK FLANG
$4.00
W0038118 COVER RETAINING LATCH
$10.95
W0042653 CHANNEL FRONT NGP UB LH
W0063371 CLIP STANDOFF POWERBOARD
W0105875 FILTER CATALYST
W0275662 INSULATN INSERT BACK PYRO BIOS
$14.30
W0283096 SCREW M4 X 7 T20 ZINCSCREW M4
$4.50
W0283127 SWITCH 0+10 POSITION
$30.45
W0283384 SCREW #8 4.2 X 28 HILO PAN PH
$4.50
W0283441 COVER CLEAN HEAT
$9.65
W0283485 RACK SIDE OVEN EASY RH E100
W0283486 RACK SIDE OVEN EASY LH E100
W0283727 HARNESS HEX OVC5000 USR INT-F
$7.05
W0284064 CLIP SIDEGRIDS
$4.50
W0284107 HINGE STD 8.8-9.5 KG 4 LAY BI
W0284351 DISH GRILL ENAM E100
$78.10
W0284366 SLIDE SINGLE EXT 1 SET
W0284369 INSULATION OVEN WRAP PYRO E100
$59.95
W0284442 ELEMENT DUAL C/HEAT STEAM E100
$142.35
W0296645 HARNESS UB EVEP DR LOCK GLOBAL
$7.15
W0361860 LAMP OVEN ROUND DIA 48
W0361887 F/FRONT UB ENAM PYRO WH GLOBAL
$69.95
W0361967 TRIM VENT DOOR ASY PYRO GLOBAL
W0361977 CNTRLLR HEX WHT TOUCH PRG 617
W0361981 PLATE MTG SWTCH CLOCK ASPIRE
$5.95
W0361985 PNL CNT & CLIPS WVEP617DSC
$205.70
W0361993 KNOB ASSY DARK ASPIRE
$17.40
W0361998 SPACER HANDLE PYRO ASPIRE
$10.15
W0362003 HANDLE DOOR DARK ASPIRE
$39.95
W0362016 TRIM SURROUND C/P PYRO GLOBAL
$27.80
W0362017 HARNESS HEXAGON CTRL INPUT
$4.60
W0362046 PANEL TOP BUILT-IN ASPIRE
$35.40
W0362115 RACK SHELF OVEN W/HOUSE
W0362116 RACK SHELF STEP DOWN W/HOUSE
W0362140 RACK INSERT GRILL DISH ASPIRE
W0362355 AIR FRYER ASSY ASPIRE 60CM
$71.50
W0362417 PNL OV DR OUT PYRO DARK SS ASP
