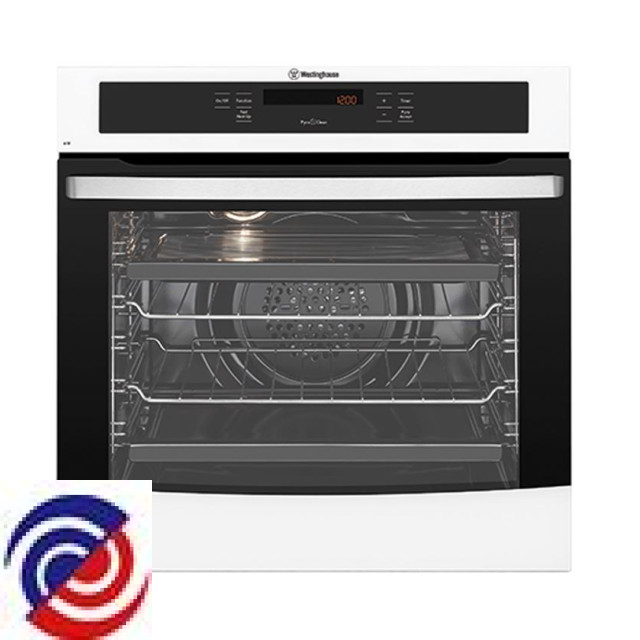

WVEP618W — 944031693 34
WESTINGHOUSE — Cooker Electric
Parts for WVEP618W
.JPG)
W0011297 BLADE FAN
W0011401 DISH GRILL ENAM F/WIDTH BIOS
W0011930 WESTINGHOUSE OVEN DOOR HANDLE
W0011995 NUT M6 LH FAN MOTOR
W0012261 ELEMENT G/BOOST 3000W - PYRO
W0012262 ELEMENT FAN RING 2200W
.JPG)
W0012326 CLIP MOUNTING ELEMENT
W0013450 LOCK DOOR ASSY CAST PYRO NGP
.JPG)
W0013597 THERMAL CUTOUT 120 DEG N/C 16A
W0013629 TRIM VENT DOOR ASSY NGP UB
$53.20
W0023144 POWERBOARD OVC3000 - EOS
$271.70
W0023201 HOLDER LAMP REAR HALOGEN BIOS
W0030872 PADDLE PIZZA WOODEN 12 INCH
$33.00
W0030873 STONE PIZZA SQUARE 380MM
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
_1.JPG)
W0050403 MOTOR FAN OVEN
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011321 COVER BASE PANEL SHIELD BIOS
$29.70
W0011345 BRACKET KRONOS PROBE MOUNT BIO
$12.60
W0011356 BRACKET DOOR SWITCH NGD
$14.50
W0011368 BRACKET HINGE SUPT APOLLO
$22.90
W0011471 PNL OV DR OUT AS WEST WH FORTE
W0011479 PANEL TOP PYRO NGP
$43.20
W0011484 PANEL SIDE RH
$28.00
W0011485 PANEL SIDE LH
$27.50
W0011515 PANEL COVER WIRE UB 40MM
$24.20
W0011666 COVER FAN & ELEMENT
$95.75
W0011857 SUPPORT ELEMENT
$12.80
W0012034 F/FRONT ENAM 40MM PYRO UB
$86.00
W0012325 RETAINER PYRO CATALYSE NGP
$11.30
W0012519 SCREW M4X5 HEX1/4' PH2 BLK ZP
$4.50
W0012579 STAND-OFF BLK PYRO WEST FORTE
W0012632 HARNESS WIRE
W0012639 SENSOR CABLE - 500MM
W0012643 HARNESS K2 INTERFACE 783/883
$4.50
W0012648 WIRE HARNESS NGP DOOR SW
W0012726 SEAL OVEN DOOR PYRO BIOS
W0012863 GLASS OVEN DOOR INNER PYRO NGP
W0012864 GLASS OVEN DOOR MID PYRO NGP
W0012997 SPACER RUBBER GLASS NGP
$8.15
W0013260 SHIELD WIRING
$11.95
W0013343 INSULATION OVEN BACK PYRO BIOS
W0013344 INSULATION OVEN WRAP PYRO NGP
W0013345 INSULATN INSERT BACK PYRO BIOS
$14.30
W0013448 BUTTON PUSH DOOR SWITCH
W0013461 BRACE OVEN REAR B/I BIOS
$24.85
W0013570 LEVER SWITCH DOOR LIGHT MICRO
$42.95
W0013630 TRIM SURROUND C/P 40MM NGP
W0013666 DUCT PLATE TOP PYRO NGP
$14.85
W0013667 DUCT PLATE BOTTOM PYRO NGP
W0013668 DUCT PLATE MID PYRO UB NGP
$18.00
W0013730 BUMPER STOP BLK
$6.55

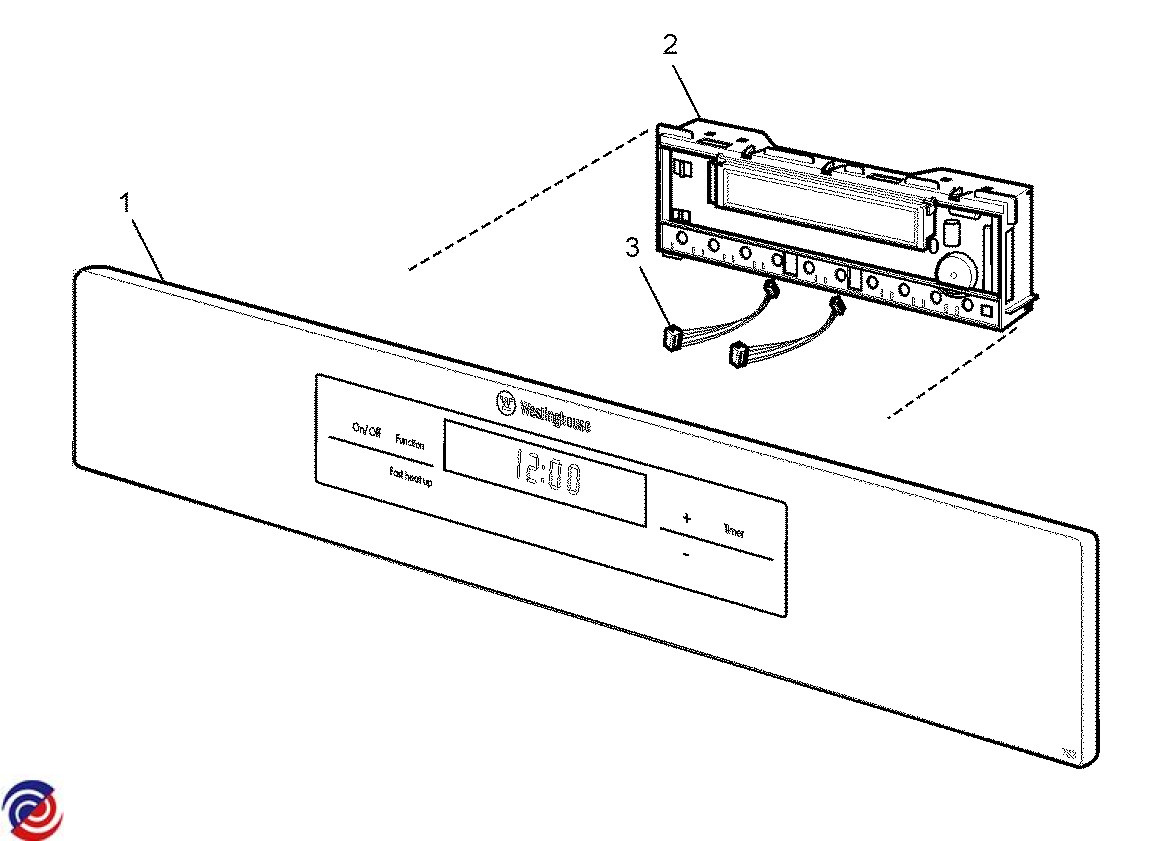

W0013867 KIT PNL CNTRL WVE618W
$328.90
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.50
W0026349 HOUSING CENTRERING HELP
W0026483 CONTROLLER KRONOS2 UPDATE PROG
W0027300 COOLING FAN MOTOR ASSEMBLY
W0027370 SCREW M4 X 25 PAN MTS PHIL BLK
$1.70
W0027397 HARNESS ADAPTOR DOOR LOCK OVC3
$15.95
W0029631 CAP MOUNT F/FRAME 40MM RUBY LH
$4.50
W0029632 CAP MOUNT F/FRAME 40MM RUBY RH
$17.00
W0030375 RACK SHELF PIZZA STONE
W0038118 COVER RETAINING LATCH
$10.95
W0039639 BASEPLATE
W0042653 CHANNEL FRONT NGP UB LH
W0042654 CHANNEL FRONT NGP UB RH
W0042768 PLUG DOME MDP16
W0053490 RACK GRILL INSERT
W0063371 CLIP STANDOFF POWERBOARD
W0064627 SCREW #4 X16 T25 W/HD PHIL#2
W0103157 SWITCH DOOR LIGHT MICRO
W0105875 FILTER CATALYST
W0114491 SWITCH CHERRY
$47.90
W0114700 SENSOR TEMPERATURE PT500
W0153998 HINGE 40MM 4 LAYER NGP
W0283441 COVER CLEAN HEAT
$9.65
W0283570 RACK SIDE STD GRILL RH E100
W0283571 RACK SIDE STD GRILL LH E100
W0283731 RACK SHELF OVEN W/HOUSE SLIDES
W0284441 ELEMENT BASE 1000W E100
