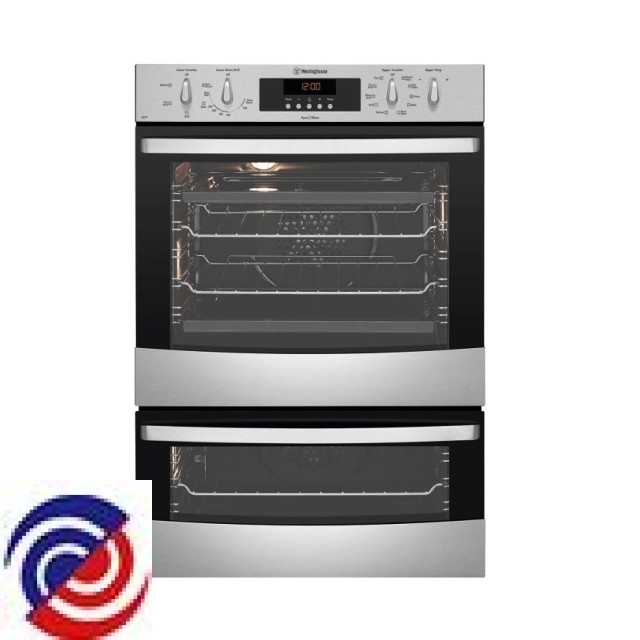

WVEP627S — 944031806 00
WESTINGHOUSE — Cooker Electric
Parts for WVEP627S
W0011237 KNOB ASSY WH BLDE SILVER FORTE
W0011319 COVER GRILL DISH
W0011401 DISH GRILL ENAM F/WIDTH BIOS

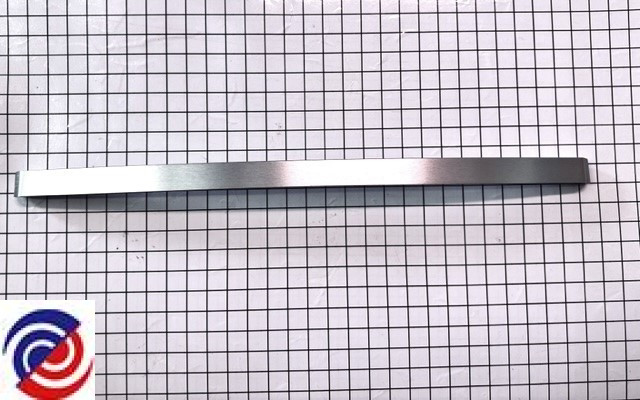

W0011930 WESTINGHOUSE OVEN DOOR HANDLE
W0011995 NUT M6 LH FAN MOTOR
W0012261 ELEMENT G/BOOST 3000W - PYRO
W0012262 ELEMENT FAN RING 2200W
.JPG)
W0012326 CLIP MOUNTING ELEMENT
W0013450 LOCK DOOR ASSY CAST PYRO NGP
W0013564 SWITCH MULTI 5
.JPG)
W0013581 CHERRY SWITCH D4KS-Y5AA N/O
.JPG)
W0013597 THERMAL CUTOUT 120 DEG N/C 16A
W0013629 TRIM VENT DOOR ASSY NGP UB
$53.20
W0013703 BUTTON CLCK S/S 3-B FORT
W0023144 POWERBOARD OVC3000 - EOS
$271.70
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
_1.JPG)
W0050403 MOTOR FAN OVEN
.JPG)
W0057771 THERMOSTAT OVEN
.JPG)
W0065076 CLIP BULB THERMOSTAT ELEC
$6.70
W0271174 IMPELLER OVEN FAN 160 MM
W0274167 SENSOR TEMPERATURE PT500 575MM
W0275063 LAMP OVEN ROUND PYRO BIOS
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011262 PLATE MOUNTING SWITCH
$14.90
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011345 BRACKET KRONOS PROBE MOUNT BIO
$12.60
W0011368 BRACKET HINGE SUPT APOLLO
$22.90
W0011470 PNL OV DR OUT AS WEST SS FORTE
W0011666 COVER FAN & ELEMENT
$95.75
W0011686 PANEL FAN COVER DUO PYRO RUBY
$59.55
W0011857 SUPPORT ELEMENT
$12.80
W0011883 CHANNEL FRONT DUO RH
W0012325 RETAINER PYRO CATALYSE NGP
$11.30
W0012519 SCREW M4X5 HEX1/4' PH2 BLK ZP
$4.50
W0012579 STAND-OFF BLK PYRO WEST FORTE
W0012636 HARNESS OVC3000 USER INT-F
$17.65
W0012637 HARNESS HEXAGON CTRL INPUT
$5.15
W0012648 WIRE HARNESS NGP DOOR SW
W0012726 SEAL OVEN DOOR PYRO BIOS
W0012731 SEAL GRILL DOOR PYRO BIOS
$59.70
W0012863 GLASS OVEN DOOR INNER PYRO NGP
W0012864 GLASS OVEN DOOR MID PYRO NGP
W0012876 GLASS GR DR MID PYRO DUO
$166.90
W0012997 SPACER RUBBER GLASS NGP
$8.15
W0013260 SHIELD WIRING
$11.95
W0013324 INSUL OVEN BACK DUO PYRO NGP
$18.70
W0013343 INSULATION OVEN BACK PYRO BIOS
W0013461 BRACE OVEN REAR B/I BIOS
$24.85
W0013578 SWITCH DOOR LIGHT ASSY NGD
$24.70
W0013595 THERMAL CUT OUT 90 DEG N.O.
W0013630 TRIM SURROUND C/P 40MM NGP
W0013666 DUCT PLATE TOP PYRO NGP
$14.85
W0013730 BUMPER STOP BLK
$6.55
W0013870 LIGHT IND AMB 240V 600 KIT
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.50
W0014036 SCREW #8 X 50 PAN #2PH
$4.50
W0014041 SCREW #8 x1/2 PH2 MUSH WASHER
$4.50
W0014042 SCREW #8 X 1/2 #2PH TC BLK
$4.50
W0022643 SCREW M4 X 4
W0022980 SHUTTLE +/-
$10.90
W0026349 HOUSING CENTRERING HELP
W0026555 CONTROLLER HEX AMBER PYRO
W0027300 COOLING FAN MOTOR ASSEMBLY
W0027397 HARNESS ADAPTOR DOOR LOCK OVC3
$15.95
W0029304 RETAINER PYRO CATALYSE DUO NGP
$7.70
W0029631 CAP MOUNT F/FRAME 40MM RUBY LH
$4.50
W0029632 CAP MOUNT F/FRAME 40MM RUBY RH
$17.00
W0029801 PLUNGER DOOR SWITCH NGD
$7.05
W0030473 F/FRONT ENAM PYRO DUO NGP
$140.00
W0030490 PANEL TOP
$44.90
W0030494 PANEL BASE BIOS 0.5MM
$38.35
W0030563 SCREW M4X0.7-25 TX20 BLK FLANG
$4.00
W0038118 COVER RETAINING LATCH
$10.95
W0039242 TRAY BAKING PREMIUM ENAM BIOS
W0042655 CHANNEL FRONT NGP DUO LH
W0052282 GLASS DUO DR IN WEST FORTE
W0063371 CLIP STANDOFF POWERBOARD
W0064627 SCREW #4 X16 T25 W/HD PHIL#2
W0103157 SWITCH DOOR LIGHT MICRO
W0105875 FILTER CATALYST
W0275662 INSULATN INSERT BACK PYRO BIOS
$14.30
W0282411 WIRE 120MM GN 01 01
$4.00
W0282425 DUCT GRILL PYRO DUO ASSY UPPER
W0282426 DUCT GRILL PYRO DUO ASSY UPPER
W0282433 PLUG BUTTON (HEYCO 2633)
W0283127 SWITCH 0+10 POSITION
$30.45
W0283401 PANEL SIDE SGWO R/H NGD
W0283402 PANEL SIDE SGWO L/H NGD
$43.10
W0283440 COVER CLEAN HEAT DUO
W0283441 COVER CLEAN HEAT
$9.65
W0283546 INSULATION GRILL WRAP PYROE100
$53.40
W0283570 RACK SIDE STD GRILL RH E100
W0283571 RACK SIDE STD GRILL LH E100
W0283645 PANEL C/WIRE DUO E100
$47.75
W0283732 HOLDER LAMP SIDE ASSY G9 PYRO
W0283882 PNL CNT & CLIPS WVEP627S
$161.20
W0283883 PNL GR DR ASSY WVEP627S
$105.00
W0284064 CLIP SIDEGRIDS
$4.50
W0284107 HINGE STD 8.8-9.5 KG 4 LAY BI
W0284314 HINGE STD 5 - 5.3 KG 4 LAY BI
$69.00
W0284369 INSULATION OVEN WRAP PYRO E100
$59.95
W0284425 RACK PACK WH DUO E100
$109.50
W0284441 ELEMENT BASE 1000W E100
