WVES613SC-L — 944031813 05
WESTINGHOUSE — Cooker Electric

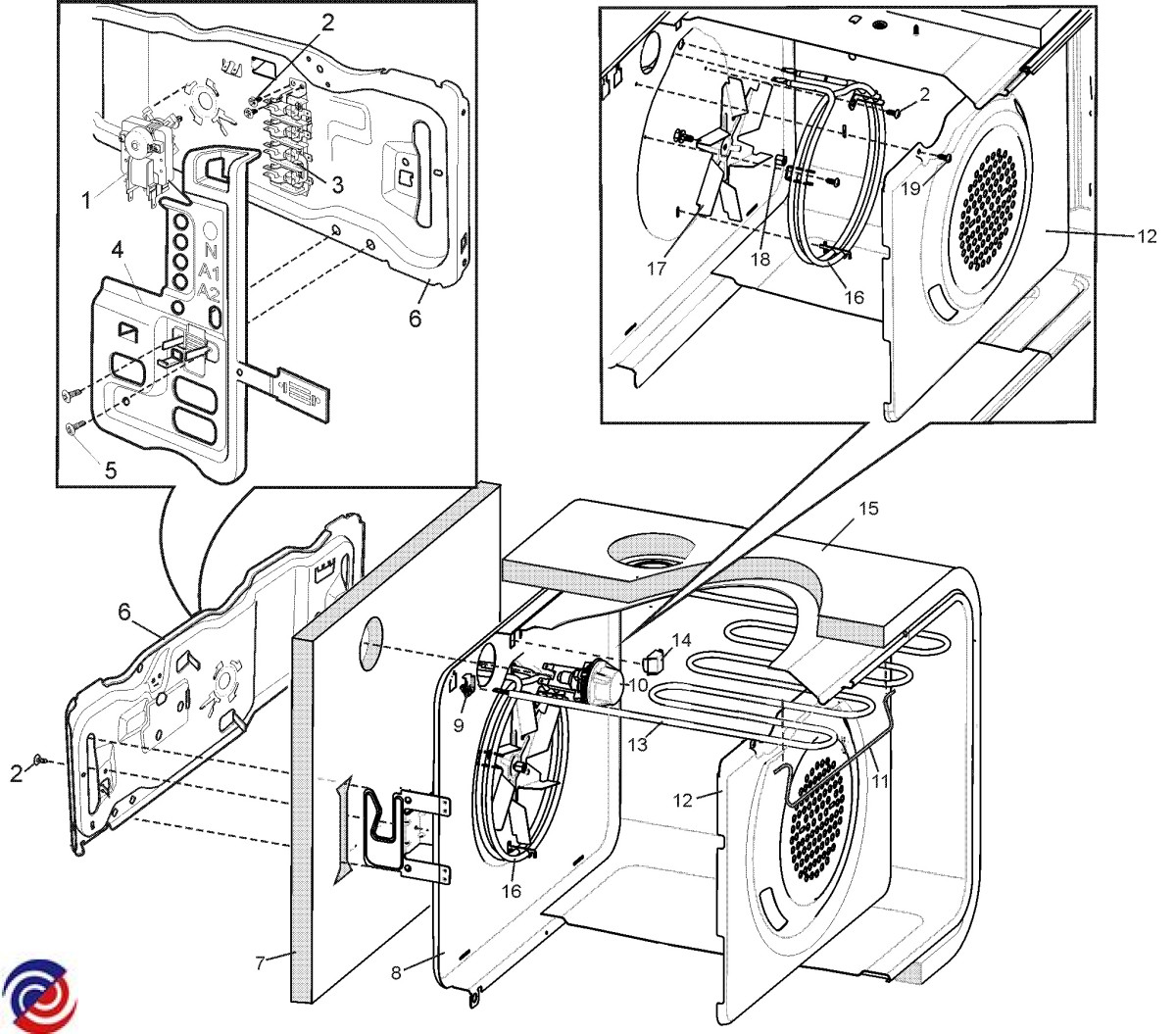

Parts for WVES613SC-L
W0011995 NUT M6 LH FAN MOTOR
.JPG)
W0012255 ELEMENT GRILL 2200W SS321
W0012262 ELEMENT FAN RING 2200W
.JPG)
W0012326 CLIP MOUNTING ELEMENT
W0013564 SWITCH MULTI 5
.JPG)
W0013596 SWITCH THERMAL CUT OUT 190 DEG
.JPG)
W0030130 TRIM DOOR TOP CAP NGD
W0030434 SEAL OVEN MODULAR PROFILE
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
W0042488 WESTINGHOUSE OVEN DOOR LATCH
$59.95
_1.JPG)
W0050403 MOTOR FAN OVEN
.JPG)
W0057771 THERMOSTAT OVEN
W0271174 IMPELLER OVEN FAN 160 MM
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011275 PLATE HINGE & PIVOT LH SOD NGD
$54.25
W0011666 COVER FAN & ELEMENT
$95.75
W0011882 CHANNEL FRONT NGP UB RH
$16.90
W0012519 SCREW M4X5 HEX1/4' PH2 BLK ZP
$4.50
W0012893 GLASS OV DR IN SOD WEST FORTE
$30.80
W0012957 RETAINER PLATE SOD LH LCD
$8.75
W0012958 PLATE RETAINER SOD RH LCD
$6.80
W0013260 SHIELD WIRING
$11.95
W0013461 BRACE OVEN REAR B/I BIOS
$24.85
W0013730 BUMPER STOP BLK
$6.55
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014023 SCREW #8 X 5/8 CSK #2PH AB BK
$4.50
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.50
W0014080 BUFFER
$9.30
W0014081 BUSH MOUNT F/FRAME V2 NGD
$5.05
W0021318 SCREW M4X5 PHIL HZ
W0022643 SCREW M4 X 4
W0027193 FRAME FRONT PAINTED SOD LH NGP
$79.00
W0029339 INDICATOR LIGHT- 600MM PIGGY
$15.65
W0030004 SUPPORT ELEMENT GRILL BIOS
$7.00
W0030352 FAN COOLING ASSY RADIAL 11W
W0030457 PANEL SIDE UB BIOS RH
$49.15
W0030458 PANEL SIDE UB BIOS LH
$49.15
W0030490 PANEL TOP
$44.90
W0030494 PANEL BASE BIOS 0.5MM
$38.35
W0030606 INSULATION OVEN BACK - KNAUF
$15.55
W0042653 CHANNEL FRONT NGP UB LH
W0060068 STRIKER DOOR LATCH
W0065137 RIVET POP 3.8 X 10 STL-TEXTRON
W0283213 SCREW M4 X 44 PAN T20
W0283384 SCREW #8 4.2 X 28 HILO PAN PH
$4.50
W0283454 THERMAL CUTOUT 145 DEG N.C.
W0283463 BAG CONTAINING SCREWS BUILTINS
$4.50
W0283485 RACK SIDE OVEN EASY RH E100
W0283486 RACK SIDE OVEN EASY LH E100
W0283545 INSULATION OVEN WRAP - KNAUF
W0284064 CLIP SIDEGRIDS
$4.50
W0284067 CLIP THERMOSTAT BIOS
$4.50
W0284351 DISH GRILL ENAM E100
$78.10
W0295025 LAMP OVEN HALOGEN 25W
$26.05
W0296464 LENS NEON FRONT MOUNT (RED)
W0296547 PANEL COVER WIRE UB E100
$34.75
W0361009 KIT PNL OV DR S/S L/H SOD ASPI
$121.80
W0361834 LENS SQUARE RED
$4.70
W0361858 ENDCAP CNL PNL SOD PAIR LH
$7.85
W0361859 ENDCAP CNL PNL SOD PAIR RH
$7.85
W0361991 KNOB ASSY PAINTED ASPIRE
$17.40
W0361994 SPACER MF SWITCH ASPIRE
W0361998 SPACER HANDLE PYRO ASPIRE
$10.15
W0362002 HANDLE DR ANODISED SOD ASPIRE
$28.60
W0362014 PLATE MTG SWITCH SELECT ASPIRE
$41.85
W0362094 GLASS & CLIPS WVE613WC
$100.05
W0362115 RACK SHELF OVEN W/HOUSE
W0362116 RACK SHELF STEP DOWN W/HOUSE
W0362140 RACK INSERT GRILL DISH ASPIRE
W0362353 RACK PACK UB V3 ASPIRE
W0370381 CONTROL PANEL, SCREEN, 3 KNOB
$95.00
W0370645 Timer,cut-out, 2HR WESTLAKE
$66.00
