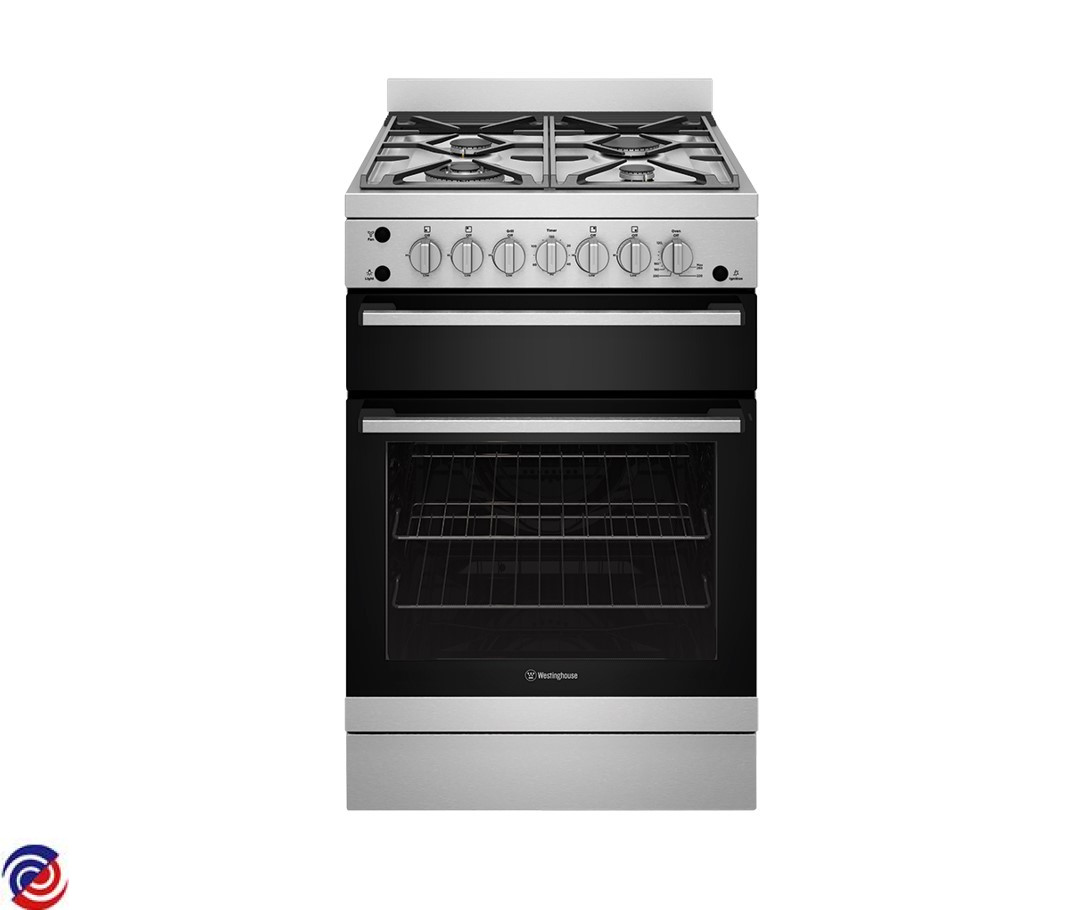

WFG612SCLP — 940598522 32
WESTINGHOUSE — Cooker Gas

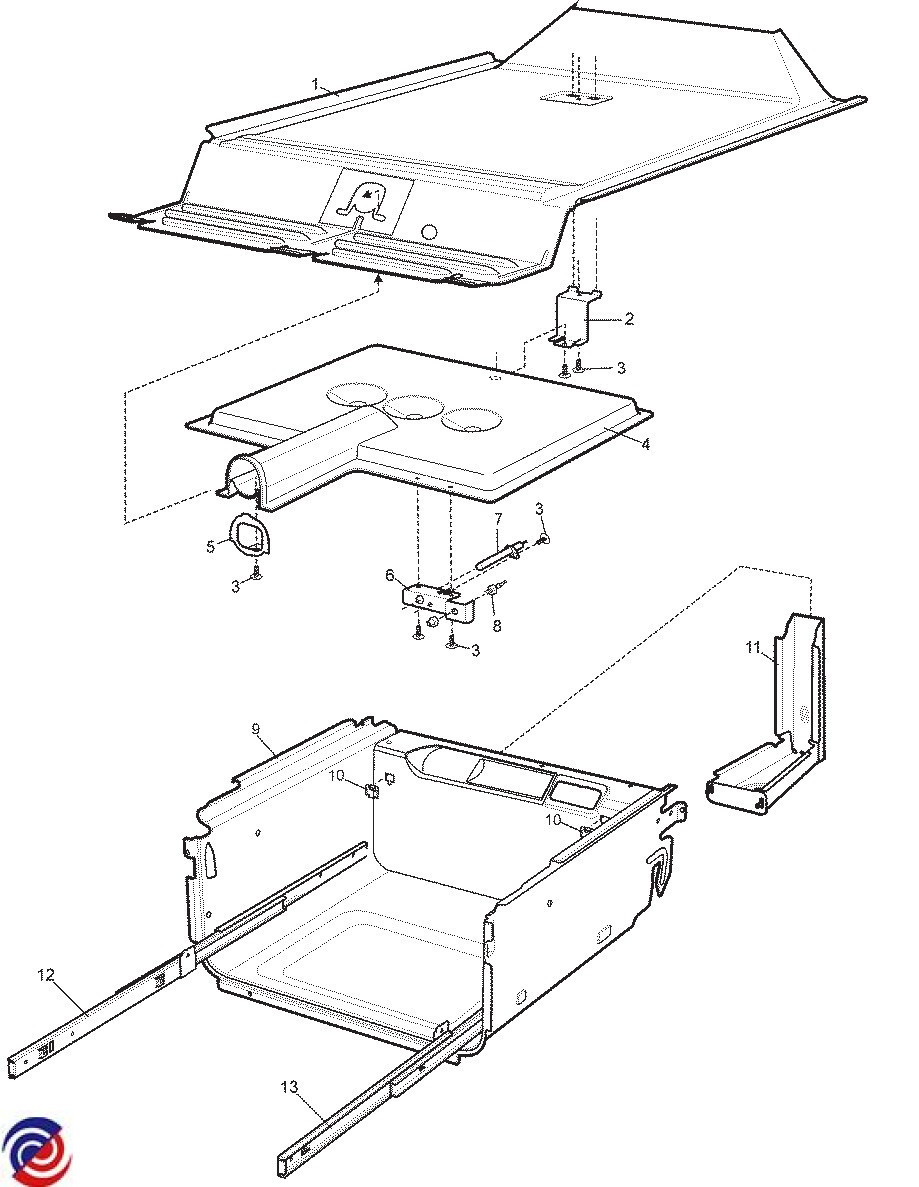

Parts for WFG612SCLP
W0365477 IMPELLER OVEN FAN 160 MM
$23.96
W0365480 ELECTROLUX WESTINGHOUSE OVEN HALOGEN GLOBE 25W G9
$21.60
W0365487 CHEF ELECTROLUX WESTINGHOUSE OVEN DOOR SEAL GASKET
$39.96
W0365529 CLIP MOUNTING ELEMENT
$8.00
W0365567 SHELF OVEN
$62.40
W0365624 CHEF ELECTROLUX WESTINGHOUSE BURNER OVEN FREESTANDING
$100.80
W0365676 THERMOCOUPLE OVEN BURNER
$49.60
W0366030 LAMP OVEN HALOGEN 25W 35.5MM
$22.40
W0366276 COVER GRILL DISH
$51.20
W0368470 CAP TOP PAIR DOOR JONAH
$29.60
W0365490 HINGE DOOR OVEN
$64.00
W0365637 RACK GRILL INSERT
$26.40
W0365638 DISH ROASTING DEEP ENAM
$80.00
W0365755 SPARK PLUG GRILL DERLITE
$17.04
W0365811 HANDLE DOOR EXTRUDED ASPIRE
$9.60
W0365856 BRACKET SUPPORT GRILL BOX L/H
$11.44
W0365857 BRACKET SUPPORT GRILL BOX R/H
$11.44
W0365872 PLATE CVR TERM GAS 540 BIOS
$12.80
W0365880 HINGE GR DOOR 540 FRESCO PH2
$5.60
W0365917 ANTI TILT PLATE
$16.00
W0365927 BRKT IGNITION GRILL H/T 540
$3.20
W0365934 FOOT LEVELING
$16.00
W0365941 TRAY SCONE
$15.36
W0365947 BRACKET STABIL. BOLT ASSY FRES
$16.80
W0365971 SHIELD SPILLAGE
$19.20
W0366038 VALVE COPRECCI FSG GRILL
$39.20
W0366044 BURNER CAP MATT OUTER WOK
$32.00
W0366062 VALVE COPRECCI FSG AUX
$39.20
W0366063 VALVE COPRECCI FSG SEMIRAPID
$39.20
W0366064 VALVE COPRECCI FSG RAPID
$39.20
W0366065 VALVE COPRECCI FSG TC WO
$24.80
W0366111 SERVICE CORD (10A) MOULDED GRO
$27.96
W0366134 OVEN BRACE 600UP ASSY FRESCO
$19.36
W0366174 INSULATION OVEN GAS 540 BIOS
$36.80
W0366179 PANEL SPLASHBACK 600 SS FRESCO
$37.60
W0366207 THERMOCOUPLE GRILL BURNER 400
$41.60
W0366287 HINGE GR DOOR 540 FREE FRESCO
$53.60
W0366291 PANEL SIDE GREY PRE PAINT
$64.80
W0366343 COVER OVEN BURNER
$74.40
W0366367 PANEL KICK 600 RFP FRESCO COLO
$88.80
W0366394 GLASS OV DR INNER 600 FRESCO
$88.80
W0366458 TRIVET WOK,600 ASPIRE PAIR
$84.80
W0366594 HOB ASSY GAS S/S 600 FF FC WES
$378.40
W0366683 COVER PANEL,WIRING PROTECTION,
$29.60
W0366686 F/FRONT PAINT 600FC FRESCO S/G
W0366856 TUBE OVEN SUPPLY 600SI FRESCO
W0366998 KNOB,GREY,GAS,ASSEMBLY,ASPIRE
$9.60
W0367006 DOOR PANEL,OUTER,OVEN,ASSEMBLY
$56.80
W0367009 DOOR PANEL,OUTER,GRILL,ASSEMBL
$28.64
W0367060 CONTROL PANEL,SCREEN,WFG612SC
$88.00
W0367433 GASKET VALVE COPRICI
W0367632 COVER FAN PANEL GAS 540
W0367640 SCREW M4X16 PAN PHIL ZC HZ
W0367928 NUT HEX M6
$3.20
W0367935 SCREW #8 X 5/16 CSK #2PH AB BK
$4.40
W0367939 SCREW M4 X 15 HEX ZC
$3.20
W0367961 SCREW M4 X 4 PAN #1PH SMALL HD
$3.20
W0367983 SCREW PF K40X 20 T20 ROUND
$4.40
W0367997 SPACER,HANDLE,BLACK,ASPIRE
$4.40
W0368028 SCREW #8 X 8MM HEX/MULTI
$4.40
W0368029 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.40
W0368050 WASHER R-FIT SWITCH FRESCO
$3.20
W0368064 BRACKET MOUNTING GRILL
$4.40
W0368072 PLUG SPARK 900 MM 260C - ELUX
$4.80
W0368084 ENDCAP HANDLE EXTRUDED ASPIRE
$4.80
W0368089 EVEREL SWITCH MOMENTARY 90
$4.80
W0368094 BUMPER STOP GREY
$4.64
W0368104 SHUTTER AERATION GRILL LP BIOS
$5.60
W0368130 SUPPORT COUNTER FRESCO
$7.20
W0368139 SCREW
$6.40
W0368140 EVEREL SWITCH TOGGLE 90
$6.40
W0368173 SWITCH BUTTON BLACK
$8.00
W0368175 SWITCH BODY BLACK
$8.00
W0368194 IGNITOR OVEN BURNER
$8.80
W0368199 CLIP BULB THERMOSTAT GAS (4MM)
$8.00
W0368212 HOLDER INJECTOR OVEN
$8.80
W0370123 THERMOCOUPLE, 275MM
$8.80
W0370124 THERMOCOUPLE, 500MM
$9.60
W0370125 THERMOCOUPLE, WOK, 500
$7.20
W0370264 BURNER PIPE, GRILL, 600 FRESCO
W0370272 BURNER PIPE, LEFT, FRONT, 540
W0370397 BURNER PIPE, RIGHT, FRONT, 600
W0370426 BURNER PIPE, LEFT, REAR, 600 F
W0370428 BURNER PIPE, RIGHT, REAR, 600
W0370458 BRACKET, GAS RAIL, 600 FRESCO
W0370871 MANIFOLD, PIPE, ASSEMBLY, 600
W0370872 INJECTOR, GRILL, BLOCK
W0370873 THERMOSTAT, 1000MM,COPRECI,COA
$125.60
W0370900 BURNER COVER, RAPID, ENAMELLED
W0372319 FOOT RUBBER
$4.40
W0372404 NUT M6 LH FAN MOTOR
$4.40
W0372549 BURNER BODY ASSY AUX IGN NG
$6.40
W0372567 BURNER BODY ASSY S/RAP IGN NG
$7.20
W0372680 BURNER BODY ASSY RAP IGN NG
$10.40
W0372900 BURNER BODY ASSY WOK IGN NG
$20.80
W0373300 RACK PACK CFG504 JONAH
$57.60
W0373543 SLIDER GRILL DBLE ACTION PAIR
$100.00
