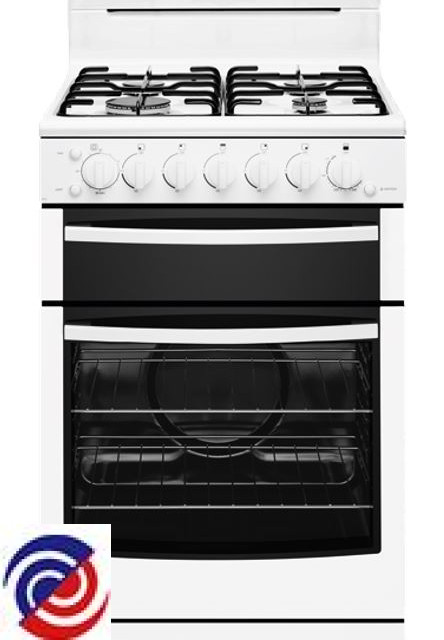

WLG503WALP — 943000898 10
WESTINGHOUSE — Cooker Gas
Parts for WLG503WALP
W0011123 BURNER GRILL
.JPG)
W0011400 DISH GRILL ENAM SEP GRILL
$68.20
.JPG)
W0011909 HANDLE GRILL DISH
$9.90
W0012570 END CAP HANDLE BLK WEST NGD
$14.05
.jpg)
W0012623 WIRE IGNITION GRILL 300MM
W0012724 SEAL VALVE SOURDILLON

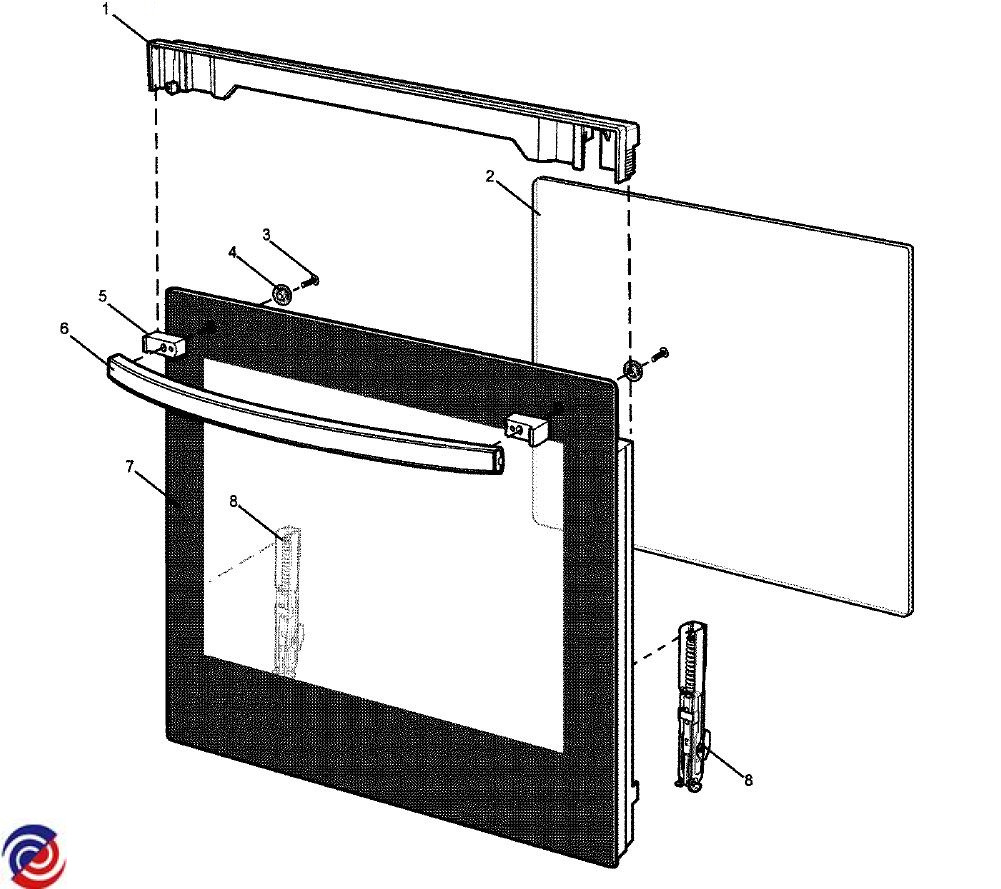

W0012861 DOOR OVEN INNER GLASS
.jpg)
W0012990 SPACER HANDLE BLK FRESCO
$10.25
W0013199 SHELF OVEN
W0013627 TRIM DOOR UPPER VENTED
W0014040 SCREW 3/16X28 PAN PH TRILOB ZY
W0022616 BURNER CROWN RAPID CYLIND NAT
$44.00
W0022623 BURNER CROWN AUX CYLINDER NAT
$44.00
W0022807 HINGE DOOR OVEN
.JPG)
W0042758 SPARK PLUG GRILL DERLITE
.JPG)
W0046406 CLIP MOUNTING ELEMENT
W0046628 TRIVET ENAMEL
W0053461 RACK GRILL INSERT
W0057776 THERMOCOUPLE 540 OVEN BURNER
.JPG)
W0060755 TIMER 60 MINUTE WESTLAKE
W0108991 BURNER CAP ENAM RAPID CYLINDER
W0108992 BURNER CAP ENAM SEMI-R CYLIND
W0108993 BURNER CAP ENAM AUX CYLINDER
W0147339 SEAL OVEN MODULAR PROFILE
W0159896 CHEF WESTINGHOUSE GAS OVEN THERMOSTAT 1000mm ES6041
W0011233 KNOB WEST 540 WHT FC GAS FRESC
W0011323 COVER OVEN BURNER
$73.75
W0011359 BRACKET IGNITOR GRILL 540
W0011363 BRACKET GAS VALVE MOUNTING
$14.30
W0011366 BRACKET HOB SUPPORT FRESCO
$9.90
W0011444 PNL OUT OV DR ASS 540 WEST FRE
$116.00
W0011466 PNL OUT GR DR ASSY 540 SM WEST
$121.95
W0011513 PANEL SIDE WHITE FRESCO
$89.30
W0011607 PNL CNT S/B SCR 510/511 BIOS
W0011658 PANEL CONTROL SCREEN WLG503WA
$137.00
W0011842 HINGE DOOR GRILL
W0011929 HNDL DOOR WEST 7820 WHITE
$60.95
W0011950 TUBE OVEN SUPPLY 540 BIOS
W0011966 TUBE BURNER 540 R/F FRESCO
$38.00
W0011967 TUBE BURNER 540 L/F FRESCO
$32.95
W0011968 TUBE BURNER 540 R/R FRESCO
$32.95
W0011969 TUBE BURNER 540 L/R FRESCO
$20.35
W0012082 FLUE DUCT OVEN 540 GAS BIOS
$6.05
W0012394 INJECTOR INJ OVEN 0.95MM LP
W0012397 INJECTOR OVEN 0_95MM LP
W0012401 INJECTOR AUX LP 0.62
W0012417 SUPPORT COUNTER FRESCO
$7.05
W0012521 SCREW M4 X 4 PAN #1PH SMALL HD
$4.50
W0012527 ADAPTOR TEST POINT LP
W0012577 ENDCAP CNTRL PANEL FRESCO PAIR
$19.60
W0012622 WIRE IGN OVEN/PIEZO 1100MM
$14.90
W0012692 SKIRT KNOB GAS WHT FRESCO
W0012748 HOLDER INJECTOR OVEN
$10.45
W0012778 CORD SERVICE 10A
$10.05
W0013234 PIPE MANIFOLD ASSY 540 SG FRSC
$22.00
W0013263 SHIELD SPILLAGE
$17.45
W0013267 SHIELD WIRING HOB RC GAS FRES
$30.00
W0013268 SHIELD GRLL GAS BURNR FRSCO LH
W0013269 SHIELD GRLL GAS BURNR FRSCO RH
W0013346 INSULATION CANOPY TOP FRESCO
W0013447 JET BYPASS COPRECI 0.45 LPG
W0013460 BRACE OVEN REAR 540 BIOS
$27.50
W0013588 SHUTTER AERATION GRILL LP BIOS
$6.25
W0013731 BUMPER STOP GREY
$5.05
W0013769 HOB 540R ENAM GAS STD FRESCO
$252.95
W0013897 INSTRUCTION GAS CONVERSION
W0013984 VALVE GRILL 6MM OUTLET NG/LP
$22.00
W0013985 VALVE HOTPLATE M12 - AUXILLARY
$40.00
W0013986 VALVE HOTPLATE M12-SEMI RAPI
$56.05
W0013988 VALVE GAS HOTPLATE M12 - RAPID
$41.00
W0013997 IGNITOR PIEZO WHT
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014026 SCREW #8 X 5/16 CSK #2PH AB BK
$4.50
W0014028 SCREW NO 8 X 8MM W/HD PD NI
$4.50
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.50
W0014064 CLIP BULB THERMOSTAT GAS (4MM)
$10.00
W0014129 SCREW M4 X 16MM HEX ZC
$4.50
W0022629 BURNER BODY SEMIRAPID
W0027187 F/FRONT PAINT 540FC SEP GRILL
$67.90
W0029306 PLATE CVR TERM GAS 540 BIOS
$13.05
W0035497 BURNER OVEN 540 ASSY BIOS
W0037482 PLATE ANTI TILT UPRIGHTS
W0038742 BRACKET MOUNTING GRILL UC20
W0039885 PANEL TOP REAR
W0039903 PANEL CABINET REAR (NO HOLE)
$28.00
W0041113 PANEL LOWER BRACE 540
W0041132 PANEL KICK WHITE
W0042316 HINGE GR DOOR 540 FRESCO
$9.00
W0045532 BOLT STABILISING
W0046720 NIPPLE INJ OVEN 1_60MM NG
W0046735 INJECTOR H/P 0.82MM
W0048101 ENDCAP REAR CONTROL PANEL RHS
W0048102 ENDCAP REAR CONTROL PANEL LHS
W0052587 CANOPY GRILL GAS FRESCO
W0052926 SPACER FOOT UC20
W0053309 STICKER GAS TYPE PROPANE
W0053471 RACK SIDE GRILL LH/RH
$59.10
W0054664 INSULATION OVEN CABINET
W0054946 OVEN ENAM GAS FRM NOLIT BIOS
W0056177 GRILL BOX ENAM 540 BIOS
W0056768 LEG LEVELLING
$18.90
W0056770 FOOT LEVELLING UPRIGHT
W0056771 FOOT RUBBER COSMA TRIVET
W0057775 THERMOCOUPLE
W0064486 SCREW 3/16X28 PAN PH TRILOB BK
W0064528 SCREW NO 8 X 10MM W/HD
W0064592 SCREW TORQ #4 X 12 # PAN HEAD
W0065406 SCREW #8 X 3/4 STEPPED PAN BLK
W0108990 BURNER CROWN MEDIUM
W0108996 BURNER BODY RAPID
W0108999 BURNER BODY AUX
W0151406 SCREW M4 X 10 PAN PHIL
