WBE4500BB-L — 925060666 01
WESTINGHOUSE — Fridge

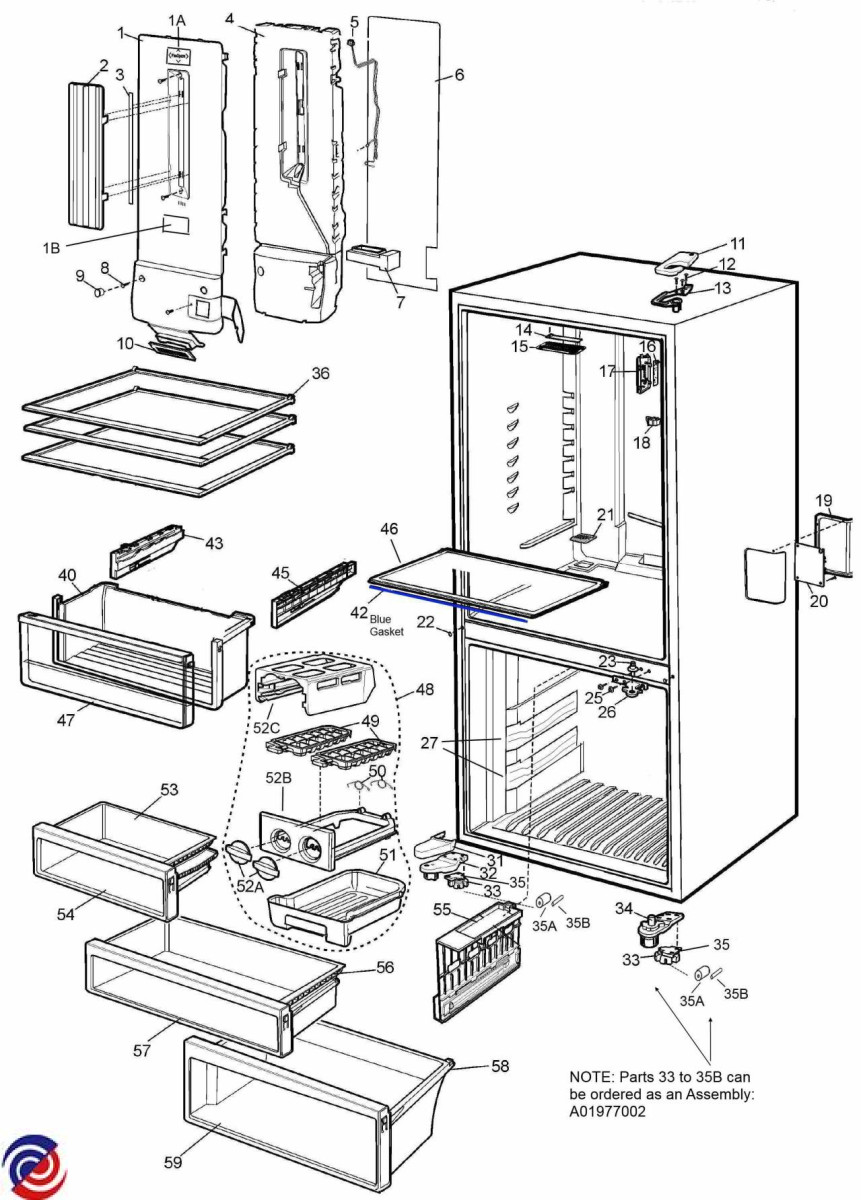

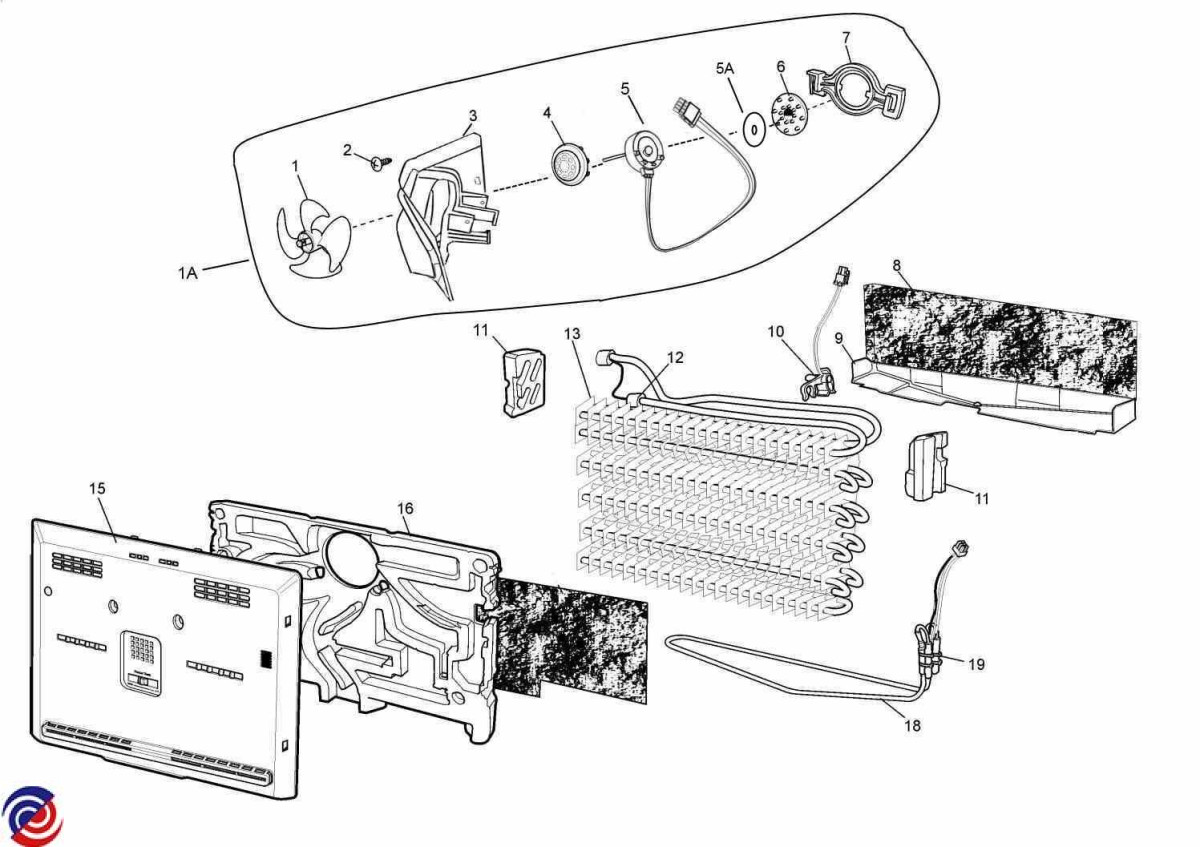

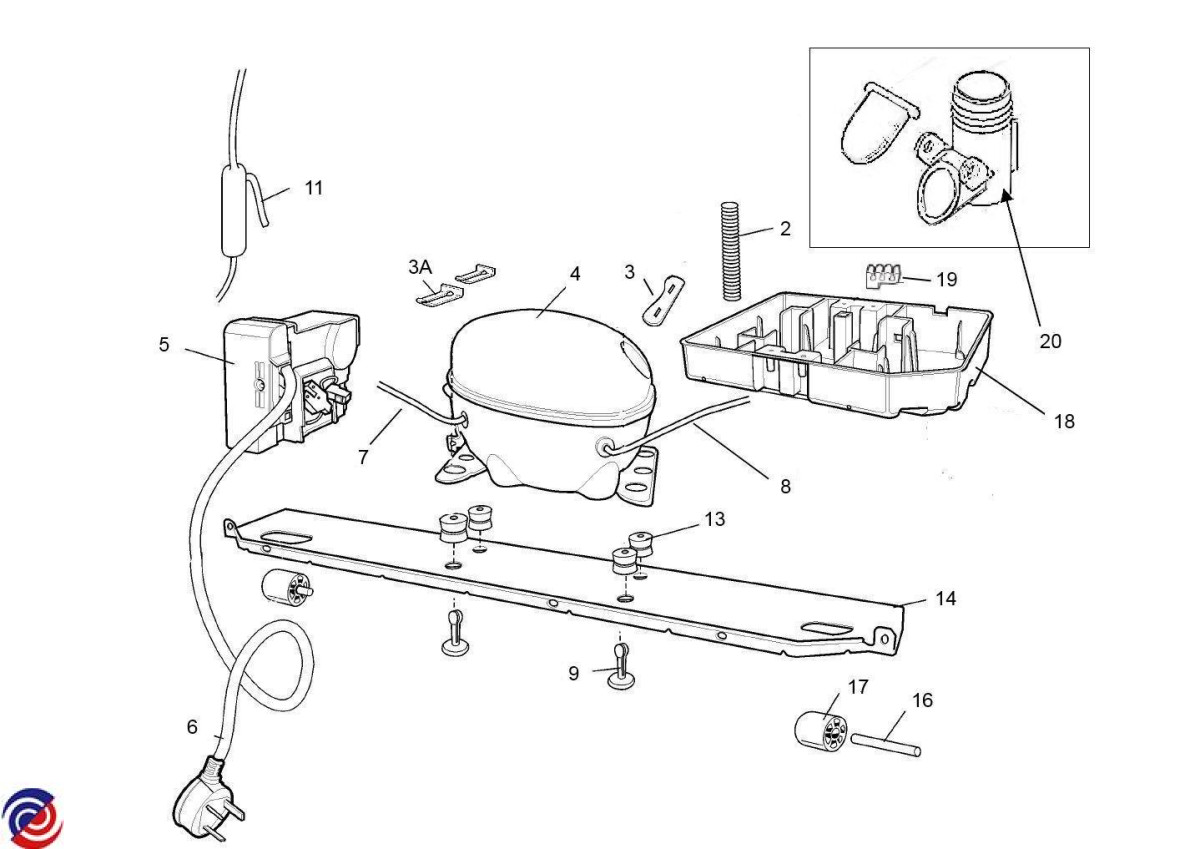

Parts for WBE4500BB-L
.JPG)
W0018582 BADGE NAMEPLATE
W0020667 PCBA 3 LEDS CLUSTER GALAGA
W0027081 SCREW TRILOB M3X6
$3.38
W0027096 BOARD G SSLB WBE4500SA
$134.89
W0027222 TUBE PROCESS
$14.36
W0027439 SCREW TRILOB M5X16
$3.38
W0027460 BIN ICE
W0027522 COVER SCREW
$3.38
W0027560 GROMMET COMPRESSOR
$8.63
W0027562 CLAMP NTC EVAPORATOR
W0027610 CLAMP COMPRESSOR
$3.38
W0029307 DRAWER MIDDLE BODY BF70
W0029559 HEATER RAD DEF R600 240V BF70W
W0029694 SHAFT ROLLER FRONT WTB4600
$5.70
W0029699 FOOT BASE THREAD
$6.56
W0029700 ROLLER FOOT
$12.83
W0029701 FOOT LEVER
W0147530 TRAY TWIST AND SERVE ASSY ICE
W0154021 PCB MAIN ERF2003 INTER DISPLAY
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0294684 SHROUD FAN ASSY BF DC 50HZ
W0295504 ELECTROLUX FRIDGE INVERTER PCB
W0295505 MOTOR FAN DC 3W
W0018166 GROMMET FAN MOTOR
$12.34
W0020669 LENS 3 LEDS CLUSTER GALAGA
$20.10
W0027114 BASE COMP ASSY 70W RAYONG
$33.68
W0027119 SCREW TRILOB M6X18
$3.38
W0027401 BAFFLE MOTOR FBZA-1750-3D
W0027411 BLADE FAN,NAT
W0027413 SEAL FOAM BOTTOM MF PINOT BF-N
$9.49
W0027441 SCREW TRUSS 4.2X13
W0027547 SHROUD FAN BF
W0027553 VALVE DRAIN ASSY BF
$138.15
W0027579 RAIL DOOR SUPPORT 70W WHT
$6.08
W0027601 GASKET FRZ BF70
$76.16
W0027603 GASKET FC BF70
$87.04
W0029310 HINGE TOP LEFT
$4.80
W0029375 SEALING MFLOW BACK BF 1725
$9.11
W0029376 DRAWER BODY BF70
$25.58
W0029396 DOOR BIN LOCKABLE TF70 WH ASY
W0029410 DOOR BIN FC SHALL 70 WH-HOTFOI
W0029422 BIN DOOR FC BOTTLE TF70W EL
W0029434 TRAY EGG 70W
W0029445 SHELF FC TF70W
W0029467 COVER TOP HINGE LEFT GR
$3.38
W0029476 COVER GRID AIR RETURN BF
$3.38
W0029480 COVER SCREW MULTIFLOW LH
$3.38
W0029481 COVER SCREW MULTIFLOW RH
$3.38
W0029538 BEARING AUTO CLOSER L TF SL
W0029539 DRAWER LOWER BODY BF70
$63.08
W0029545 DRAWER FZR FR LWR ASY 70 WH
$47.74
W0029547 DRAWER FZR FR UPR ASY 70 WH
$47.74
W0029572 TRAY EVAP DRAIN BM/SD 70W
$12.38
W0029596 DRAIN PAN SD
W0029597 PAN DRAIN DYN CON
W0029603 REAR HOUSING PCB COVER
$123.60
W0029674 HINGE CENTRE BASE ASSY
$28.31
W0029675 HINGE CENTRE PIN SWING DOOR
W0029697 COVER FOOT LEFT HINGE GREY
$9.71
W0029703 HINGE BASE LEFT ASSY
$21.75
W0029746 CRISPER SUPPORT LH
W0029747 CRISPER SUPPORT RH
W0029749 CRISPER COVER ASSY BF70 WH
W0029761 BRACKET ICE MAKER
$10.88
W0029764 SUPPORT PASTRY SLIDE LH
$13.76
W0029817 RETAINER CLIP
$3.38
W0029820 EPS FZ AIR STOPPER
$3.75
W0029843 TUBE CORRUGATE PF
W0029925 CRISPER GASKET 70
$8.55
W0030112 HEATER TUBE DRAIN PAN SD
$68.48
W0030113 SPACER 3 TURN HEATER
$3.38
W0030287 EVAPORATOR FF BF70
$71.81
W0030381 TUBE JUMPER H/X 70W EMBRACO
$6.00
W0147520 SWITCH DOOR
$19.88
W0147553 SHAFT ROLLER
W0154010 DOOR BIN FLEX 70 WH-HOTFOIL
W0154012 DOOR BIN FINGER TF70W WH
W0154026 LENS COVER BLUE ASSY
$20.63
W0274142 ROLLER FIXED FOOT ASSY
$7.95
W0275285 SCREW (4,8X16 CP/C15)
$3.00
W0275459 MASTIC RUBBER T4MM
$12.04
W0275544 EXTENSION SLIDE ASSY LH 300MM
W0275545 EXTENSION SLIDE ASSY RH 300MM
W0275612 CLAMP COMPRESSOR SINGLE
$3.38
W0295964 POWER CORD INV AU/NZ FERITE
$34.84
W0296466 EPS MULTIFLOW BF1725 WEST
W0296477 DRAWER FZR FR MID ASY 70 WH FT
$47.74
W0296478 PCBA UI 2ZONE WH BF INTL WHT
$68.85
W0296512 DISPLAY UI 2ZONE BF INT WHT
$76.16
W0296601 DOOR SPARE FZR+FC WBE4500BB-R
$609.26
W0359364 COMPRESSOR
W0361765 COVER DEODORIZER
W0361766 MULTIFLOW ASSY WBE4500WB ML01
W0361769 DRAWER FRONT BF70 FLAT WH ASSY
$48.00
W0361777 EPS EVAPORATOR BF 70
$5.59
W0361778 COVER EVAPORATOR BF70 ASY 2-Z
$54.53
W0361827 HARNESS-ASSY M/FLOW BF WEST
$27.41
W0361912 SENSOR HARNESS-ASSY FZR DEFROS
W0361970 GROMMET FAN PANA DC FAN
