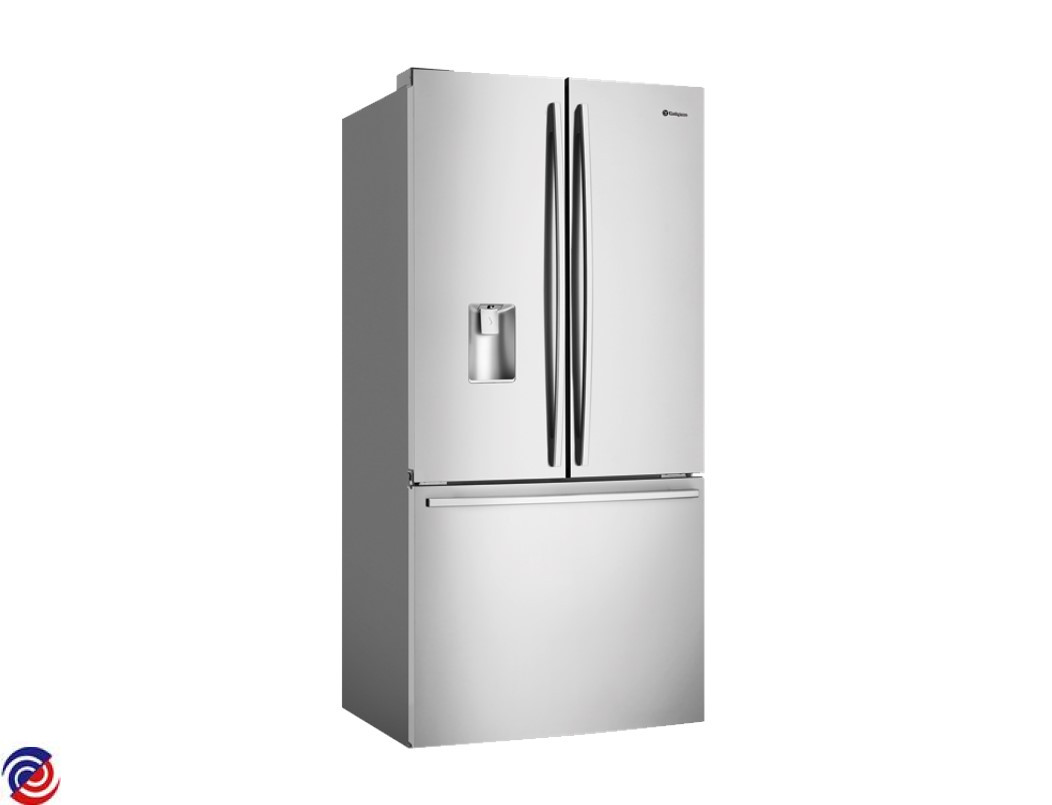

WHE5160SA-D — 925042855 00
WESTINGHOUSE — Fridge
Parts for WHE5160SA-D
.JPG)
W0018097 BIN HALF WIDTH
W0018275 BIN CRISPER REAR
W0018295 FREEZER TRAY 790W ELUX
W0018334 FACIA ASSY BIN FZR
.JPG)
W0018405 SWITCH REED
.JPG)
W0018406 MAGNET REED SWITCH
W0018565 WESTINGHOUSE FRIDGE BOTTLE BIN SHELF
.JPG)
W0018582 BADGE NAMEPLATE
W0018634 VALVE SOLENOID SINGLE
W0086083 BAFFLE KIT MOTORISED
W0086637 HOSE DRAIN (SLIT 130MM)
$11.90
.JPG)
W0086775 SWITCH LAMP
W0087161 TRAY EGG
W0087464 ROLLER REAR GREY
.JPG)
W0087929 SENSOR COMPLETE FC
W0088106 STOP SLIDE
W0088199 HEATER DEF & DTT R600A 790W
W0088757 CONTROL BOARD/BOX ERF2500++I&W
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0018042 BRACKET FAN MOTOR
$7.00
W0018049 CLIP SELF ADHESIVE
$9.00
W0018078 SHROUD FAN MOULDED
$16.30
W0018166 GROMMET FAN MOTOR
$16.45
W0018170 GROMMET COMPRESSOR
W0018253 CAP CORNER WHT
$17.05
W0018277 FACIA ASSY CRISPER
W0018279 RUNNER TRAY FZR
$12.20
W0018292 SUPPORT CENTRE
$14.90
W0018293 RAIL BIN RH FZR
$14.00
W0018294 RAIL BIN LH FZR
$14.05
W0018301 BAFFLE AIR RETURN
$15.40
W0018377 SCREW #8 X 7.5 EBM4307SC
$4.50
W0018380 EPS HOUSING CONTROL REAR
W0018410 PAN DRAIN
$21.85
W0018414 BIN FZR LOWER
$49.95
W0018452 SCREW LED BOARD ESE6077SC
$4.50
W0018477 EVAPORATOR HEAT SHIELD COVER
$16.50
W0018493 HINGE TOP ASSY LH
$24.85
W0018494 HINGE TOP ASSY RH
$24.85
W0018495 HINGE ASSY BTM LH
$34.75
W0018496 HINGE LOWER ASSY RH
$34.75
W0018497 HINGE SPRING BTM RH WHE5100SA
W0018498 HOUSING LED EHE5107SA
W0018504 SCREW, ST3 9 X 20 WHE5100SA
W0018505 BRACKET FZR IDP ADJUSTMENT LH
$9.90
W0018506 BRACKET FZR IDP ADJUSTMENT RH
$9.90
W0018514 SHAFT & PINION ASSY FZR
$43.90
W0018519 HARNESS LED EHE5107SA
$53.00
W0018530 BLADE FAN
W0018538 CLIP FOR DRAWER SLIDE ASSY LH
$8.75
W0018566 DOOR DAIRY
W0018575 COVER TOP HINGE LH EHE I & W
$23.80
W0018576 COVER TOP HINGE RH EHE I & W
$23.80
W0018631 LEVER DISPENS I & W -
W0018661 VALVE DUAL SOLENOID EHE
W0018686 UI ASSY IMD I&W WEST WINT
$249.45
W0018692 TANK TUBE WATER ASSY
$75.00
W0018696 END CAP ASSY TOP LH
$24.20
W0018697 END CAP LOWER ASSY WHT LH
$24.20
W0018698 END CAP ASSY TOP RH
$24.20
W0018699 END CAP LOWER ASSY WHT RH
$24.20
W0026998 LENS LED COVER
$10.95
W0027382 SENSOR + COVER HUMIDITY MD
W0027406 LENS MULTIFLOW WH FD I&W
$7.70
W0079509 SPACER RJ505EA
W0081199 TIE CABLE 140MM LONG
W0081263 PIN COMPRESSOR MTG RS652M*6
W0081816 GASKET (6MM TESSA TAPE) BJ414Q
W0082722 FOAM TAPE RJ393V
W0083235 CLIP-HEATER-ALUMINIUM BJ414Q
W0084491 SEAL BYPASS PLASTIC N410F
W0084558 DAMPER NOISE
W0084749 CLAMP-CORD BJ385T
W0085494 INSULATION EVAP COVER RJ523V
W0085599 SPACER ROLLER STRIKESIDE RJ393
W0085624 M/F SEALING NB380J
W0085663 BRACKET PRE COOLER RH RJ423V
W0085664 BRACKET PRE COOLER LH RJ423V
W0085668 TRAY DEFROST WATER RJ393V
$28.75
W0085702 ROLLER ADJUSTABLE RJ393V
W0085947 PLUG SCREW
$3.90
W0086004 SENSOR INSULATION
W0086350 GRILLE AIR
W0086359 SHELF ASSY SPLIT FC
W0086447 CAP
$12.90
W0086579 TAPE FOAM SEALING SBM3800MA
W0086648 SHELF FC 699.92MM X X386.89MM
W0086700 STRAINER DRAIN TUBE NB380J
W0087402 SCREW 8/32 X 3/8 ETM3600WB
W0087403 CLIP MOUNTING COMPRESSOR
W0087405 SCREW 12/14 16MM ETM3600WB
W0087406 SCREW-HINGE/CAM-BTM ETM3600WB
$4.50
W0087407 SCREW 8/32 X 1/2THREAD FORMING
W0087408 SCREW NO8 X 3/4 PAN HD ETM3600
W0087409 SCREW EVAP COVER 8 X 1/2
$4.00
W0087410 SCREW DELI RUNNER RJ393V
W0087411 SCREW HINGE CENTRE
$4.50
W0087412 SCREW ETM3600WB
W0087416 SCREW 8 X 1/2 T/F ETM3600WB
W0087417 NUT ETM3600WB
W0087422 LOCK WASHER ESE6108WA
W0087559 SCREW. M4 X 10 PAN HEAD
W0087587 GASKET CONTROL REAR LOWER
W0087594 BASE PLATE COMP ASSY STM5200WA
W0087688 TRAY EGG
W0087720 COVER EVAP WTM5200PA
W0087738 TROUGH DRAIN ASSY BJ513V *10
W0087779 RAIL EXTENSION SLIDE ASSY FZR
W0087794 SCOOP ICE
W0087809 BIN ICE
W0087822 SHAFT ROLLER
$7.00
W0087918 LID CRISPER ASSY WITH RAILS
W0088084 RUBBER BUMPER UNION FC
W0088090 HOUSING CONTROL REAR
W0088147 EVAPORATOR R600A WHE5000SA
W0088159 COM R600A EMB66CLC EMBRACO
W0088186 CAPAC 4UF 400V 2 WIRE CLIP IN
W0088228 KIT ELECTRICS EMB66CLC
W0088231 COVER EVAP ASSY EBM5107SC
W0088385 RACK WINE
W0088480 DOOR LOCK SPRING BTM RH
W0088486 BIN FZR UPPER
W0088510 SLIDE ASSY FZR RH
W0088511 SLIDE ASSY FZR LH
W0088525 SCREW M8 P1 25 X 16MM HEX
$6.25
W0088553 PINION CLIP COVER ASSY RH
W0088556 SWITCH PUSH I&W LEVER
W0088607 DOOR ASSY DRAW WHE5100SA-D
W0088609 DOOR FOAMED FC RH WHE5000SA
$390.40
W0088613 DOOR HANDLE EXTRUSION FC
W0088614 HANDLE ASSY FZR DOOR WHE5100SA
W0088617 HANDLE FC. PEDESTAL. WHE5100SA
W0088630 ICE MAKER ASSY
W0088665 HANDLES DOOR SET OF 3
W0088678 GASKET FC DOOR LH WHE5000SA
W0088679 GASKET FC DOOR RH WHE5000SA
W0088682 MOTOR FAN
W0088685 GASKET DOOR FZR
W0088774 LED BOARD ASSY WATER DISP
W0096136 PCB 3 LED BOARD
W0134832 TAPE-FOAM SEAL18X4 14M/RLL.
W0147341 INSTALL ICE&WATER KIT
W0153993 DOOR FOAMED FCLH WHE5160SA
