WHE5204SC — 925060868 03
WESTINGHOUSE — Fridge

Parts for WHE5204SC

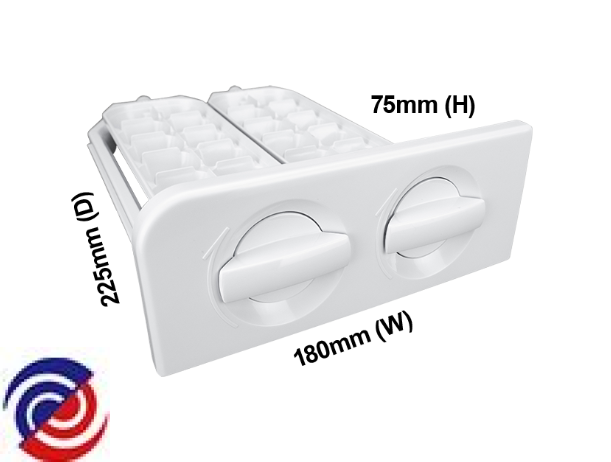

W0368405 ELECTROLUX WESTINGHOUSE FREEZER TWIST & SERVE ICE TRAY
$36.75
W0368416 SHROUD FAN ASSY BF DC 50HZ
$84.00
W0368451 EXTENSION SLIDE ASSY LH 300MM
$40.50
W0368452 EXTENSION SLIDE ASSY RH 300MM
$40.50
W0368463 ELECTROLUX WESTINGHOUSE FRIDGE FREEZER DEFROST SENSOR HARNESS
$18.71
W0368523 BIN ICE
$27.75
W0368660 HEATER RAD DEF R600 172W BF80W
$62.25
W0368856 ELECTROLUX WESTINGHOUSE FRIDGE FAN MOTOR DC 3W
$57.75
W0370016 SUPPORT, CRISPER, LH
$12.00
W0370706 WESTINGHOUSE FRIDGE HUMIDITY SENSOR & COVER
$12.75
W0371547 BAFFLE MOTOR FBZA-1750-3D
$70.50
W0372814 CRISPER SUPPORT RH
$14.25
No image available
W0365693 NAMEPLATE WHITE WEST
$9.00
No image available
W0365795 GEAR
$9.00
No image available
W0365812 GROMMET COMPRESSOR
$10.50
No image available
W0365942 GROMMET FAN MOTOR
No image available
W0366097 SPRING FLIP MULLION MD
$9.75
No image available
W0366169 MAGNET SENSOR REED SW
$35.25
No image available
W0366316 LENS 3 LEDS CLUSTER GALAGA
$15.75
No image available
W0367948 RETAINER CLIP
$3.00
No image available
W0367952 CLAMP COMPRESSOR SINGLE
$3.00
No image available
W0368332 WESTINGHOUSE FRIDGE FLIP MULLION MD
$87.00
No image available
W0368381 SLIDER TELESCOPIC RAIL LH ASY
$162.00
No image available
W0368382 SLIDER TELESCOPIC RAIL RH ASY
$189.00
No image available
W0368404 SHROUD FAN BF
$67.50
No image available
W0368443 TRAY EGG 70W
$13.50
No image available
W0368446 MULTIFLOW ASSY WBE4500WB ML01
$114.75
No image available
W0368701 GASKET FRZ BF80
$87.00
No image available
W0368818 PANEL UI PINOT WEST 2Z INTL
$34.50
No image available
W0368860 PCBA # LED CLUSTEER GALGA
$18.75
No image available
W0368864 SCREW MOUNTING HANDLE MD36
$4.13
No image available
W0369890 COMPRESSOR PLATE, ASSEMBLY, 17
No image available
W0369964 BODY, DRAWER, MIDDLE
No image available
W0369977 BODY, CRISPER, BF80 AOF
$36.75
No image available
W0369978 LOCK, BUTTER, SHELF
No image available
W0369986 BODY, DRAWER, PASTRY
$25.50
No image available
W0369987 COVER, AIR, BF
No image available
W0369994 CONFIGURED ELECTRONIC, ERF2003
$171.75
No image available
W0370000 WATER DRAIN, EVAPORATOR, FREEZ
$28.88
No image available
W0370004 TOP COVER, HINGE, IW RH DG
$4.50
No image available
W0370024 BRACKET, ICE-MAKER
$11.25
No image available
W0370027 SUPPORT PASTRY SLIDE LH
$15.75
No image available
W0370034 SHAFT, TELESCOPIC RAIL WH80
$18.75
No image available
W0370374 DRYER, ASSEMBLY
$12.00
No image available
W0370571 SWITCH DOOR REED
$6.00
No image available
W0370934 CLAMP, NTC SENSOR
$4.13
No image available
W0371545 EXTENSION SLIDE INSERT FZR RH
$13.50
No image available
W0371714 GROMMET FAN PANA DC FAN
No image available
W0372297 WASHER SLINGER NYLON
$3.38
No image available
W0372322 COVER SCREW MULTIFLOW RH
$3.00
No image available
W0372335 COVER MAGNET ENDCAP MD80 GR
$4.13
No image available
W0372369 SCREW 6X20 SELF TAPPING
$3.00
No image available
W0372378 CENTRE HINGE PIN DRAWER DOOR
$3.00
No image available
W0372381 CLAMP COMPRESSOR
$3.00
No image available
W0372387 SCREW-HINGE/CAM-BTM ETM3600WB
$3.38
No image available
W0372389 COVER SCREW MULTIFLOW LH
$3.00
No image available
W0372467 EPS FZ AIR STOPPER
$3.75
No image available
W0372497 COVER DEODORIZER WHITE FS
$4.35
No image available
W0372513 BEARING HINGE FZR TOP OPEN
$5.25
No image available
W0372540 ROLLER REAR WTB4600WA RAYONG
$6.00
No image available
W0372551 HINGE TOP LEFT
$6.00
No image available
W0372563 COVER TOP HINGE IW LH DG
$6.75
No image available
W0372590 HINGE TOP RIGHT
$7.50
No image available
W0372618 EXTENSION SLIDE INSERT FZR LH
$7.50
No image available
W0372686 TUBE JUMPER H/X 80W FMXY
$9.30
No image available
W0372687 SEALING MFLOW BACK BF 1725
$9.75
No image available
W0372697 SEAL FOAM BOTTOM MF PINOT BF-N
$10.50
No image available
W0372728 SUPPORT PASTRY SLIDE RH
$11.25
No image available
W0372733 BIN DOOR DAIRY KNOB TF
$10.46
No image available
W0372768 LENS COVER BLUE ASSY
$12.45
No image available
W0372826 BEARING PAD
$15.75
No image available
W0372852 CRISPER GASKET 80
$18.00
No image available
W0372876 BIN DOOR LOCKABLE BODY TF70 EL
$18.00
No image available
W0372877 BIN DOOR LOCKABLE TF70 SEA ASY
$25.50
No image available
W0372992 BRACKET ADJUSTMENT BF IDP RH
$22.91
No image available
W0373000 BRACKET ADJUSTMENT BF IDP LH
$23.25
No image available
W0373068 HARNESS-ASSY M/FLOW BF WEST
$29.25
No image available
W0373069 BIN DOOR FINGER MD ASSY WH
$28.50
No image available
W0373078 HINGE CENTRE BASE ASSY
$30.00
No image available
W0373226 BIN DOOR FC SHAL MD80 1-HOTFO
$43.50
No image available
W0373253 DRAWER TELESCOPIC RAIL WH80
$48.00
No image available
W0373263 BIN DOOR BOTTLE MD80 WH
$45.75
No image available
W0373276 DRAWER FRONT BF80 FLAT WH ASSY
$51.00
No image available
W0373278 DRAWER FZR FR UPR ASY 80 WH
$51.00
No image available
W0373279 DRAWER FZR FR MID ASY 80 WH
$51.00
No image available
W0373294 BIN DOOR FLEX 70 1-HOTFOIL
$51.00
No image available
W0373314 DRAWER FZR UPPER ASY 80 WH FT
$54.00
No image available
W0373336 CRISPER COVER ASSY BF80 WH
$57.75
No image available
W0373398 SHELF FC TF80W
$68.25
No image available
W0373400 PCBA UI 2ZONE FLAT SEA FD WHT
$64.50
No image available
W0373436 DRAWER FZR MID ASY 80 WH FLAT
$67.31
No image available
W0373467 COVER EVAPORATOR BF80 ASY 2-Z
$78.00
No image available
W0373484 GASKET FC MD80
$79.50
No image available
W0373487 CRISPER BODY ASSY BF80 WH
$73.50
No image available
W0373618 EPS EVAPORATOR BF 80
$118.50
No image available
W0373628 EVAPORATOR FF BF80
$122.25
No image available
W0373676 BOARD G SSLB WBE4500SA
$141.75
No image available
W0373684 VALVE DRAIN ASSY BF
$146.25
No image available
W0373694 DISPLAY UI WH 2ZONE FD INT WHT
$153.75
No image available
W0373876 DOOR SPARE FZR WHE5204SB-D
$354.00
No image available
W0373944 DOOR SPARE FC L+R WHE5204SB-D
$547.50
