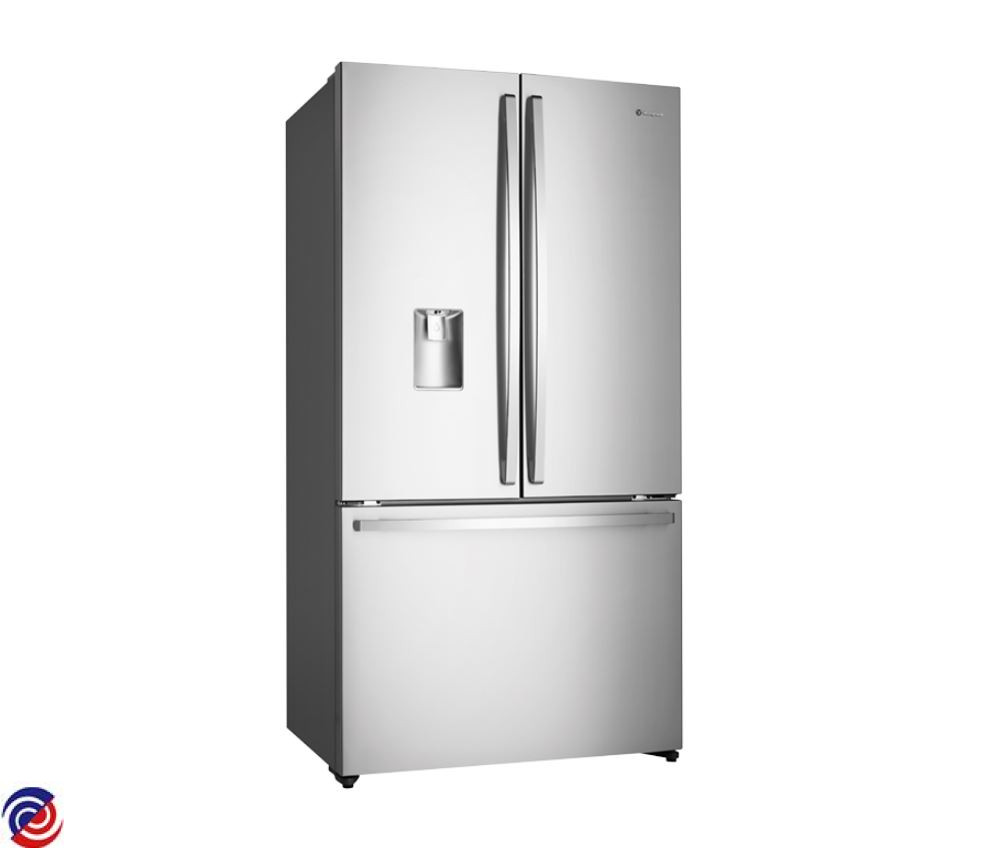

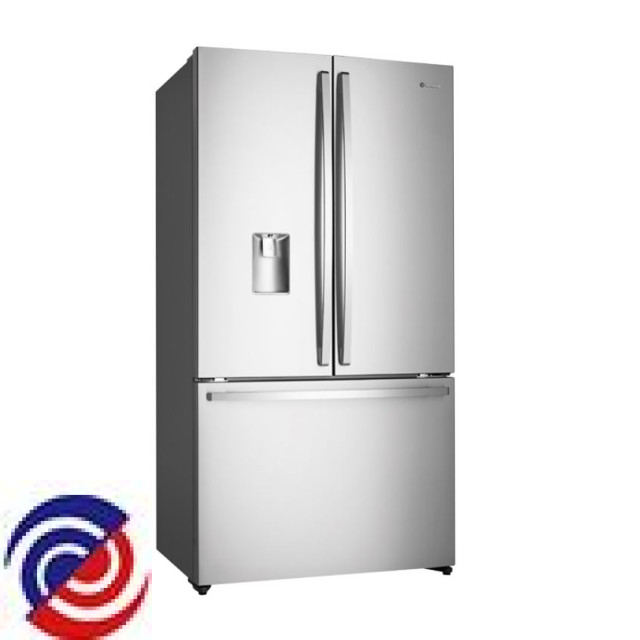

WHE6060SA — 925060255 00
WESTINGHOUSE — Fridge
Parts for WHE6060SA
.JPG)
W0018582 BADGE NAMEPLATE
W0027096 BOARD G SSLB WBE4500SA
$179.85
W0027140 FILTER WATER (PINOT)
W0027373 MOTOR FAN DC 3W
W0027439 SCREW TRILOB M5X16
$4.50
W0027550 SHROUD FAN ASSY BF DC 50HZ
W0027560 GROMMET COMPRESSOR
$11.50
W0027562 CLAMP NTC EVAPORATOR
W0027610 CLAMP COMPRESSOR
$4.50
W0027907 ICE MAKER ASSEMBLY
W0029435 TRAY EGG 80W
W0029622 ASSEMBLY FLIP MULLION MD
W0029639 HEATER FLIP MULLION MD
W0029694 SHAFT ROLLER FRONT WTB4600
$7.60
W0029699 FOOT BASE THREAD
$8.75
W0029701 FOOT LEVER
W0029880 ELECTROLUX WESTINGHOUSE FRIDGE WATER VALVE INLET 2-WAY
W0029938 SENSOR MAGNET REED SW
$35.75
W0030565 VALVE ASSEMBLY SINGLE
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0273946 HANDLE ASSY MD90 WH
W0281794 ELECTROLUX WESTINGHOUSE FRIDGE UNILUX REPLACEABLE FILTER
W0359306 PEDESTAL KIT FREEZER DOOR - FITS HOLLOW HANDLES ONLY
W0018166 GROMMET FAN MOTOR
$16.45
W0020668 TUBE 90 DEGREE ELBOW
$5.55
W0020669 LENS 3 LEDS CLUSTER GALAGA
$26.80
W0020671 SWITCH DOOR REED
W0027119 SCREW TRILOB M6X18
$4.50
W0027138 CONNECTOR FILTER MANIFOLD
$98.65
W0027223 TUBE PROCESS 100MM
$4.50
W0027228 SCREW PF AB 3.5X1.27X19 PFZ PF
$4.50
W0027382 SENSOR + COVER HUMIDITY MD
W0027401 BAFFLE MOTOR FBZA-1750-3D
W0027411 BLADE FAN,NAT
$32.25
W0027441 SCREW TRUSS 4.2X13
W0027547 SHROUD FAN BF
W0027553 VALVE DRAIN ASSY BF
$184.20
W0029309 HINGE TOP RIGHT
$8.65
W0029310 HINGE TOP LEFT
$6.40
W0029397 BIN DOOR LOCKABLE TF80 SEA ASY
$22.20
W0029407 BIN DOOR FLEX 80 1-HOTFOIL
W0029427 BIN DOOR DAIRY BODY TF80 EL
$20.00
W0029428 BIN DOOR DAIRY LID 80 EL-ART
$49.25
W0029476 COVER GRID AIR RETURN BF
$4.50
W0029480 COVER SCREW MULTIFLOW LH
$4.50
W0029481 COVER SCREW MULTIFLOW RH
$4.50
W0029536 BEARING AUTO CLOSER R TF SL
W0029538 BEARING AUTO CLOSER L TF SL
W0029567 BEARING HINGE FZR TOP CLOSED
$8.15
W0029576 BRACKET ADJUSTMENT BF IDP RH
$29.05
W0029577 BRACKET ADJUSTMENT BF IDP LH
$29.05
W0029579 COVER TOP HINGE IW RH GR
$11.00
W0029603 REAR HOUSING PCB COVER
$164.80
W0029635 SPRING FLIP MULLION MD
W0029638 HINGE FLIP MULLION MD
W0029640 EXTENSION SLIDE INSERT FZR LH
$9.40
W0029641 EXTENSION SLIDE INSERT FZR RH
W0029674 HINGE CENTRE BASE ASSY
$37.75
W0029676 CENTRE HINGE PIN DRAWER DOOR
$4.50
W0029690 COVER MAGNET ENDCAP MD80 GR
$4.50
W0029697 COVER FOOT LEFT HINGE GREY
$12.95
W0029698 COVER FOOT RIGHT HINGE GREY
$4.50
W0029707 COVER TOP HINGE IW LH GR
$4.00
W0029708 FOOT LEFT ASSY
$20.10
W0029709 FOOT RIGHT ASSY
$20.10
W0029732 SCREW TRILOBULAR M4X12
$4.50
W0029761 BRACKET ICE MAKER
$14.50
W0029762 ICE MAKER COVER ELUX ARTWORK
$11.75
W0029764 SUPPORT PASTRY SLIDE LH
$18.35
W0029770 COVER VALVE REAR PANEL
$221.60
W0029787 SLIDER TELESCOPIC RAIL LH ASY
W0029788 SLIDER TELESCOPIC RAIL RH ASY
W0029799 GROMMET FAN PANA DC FAN
$16.05
W0029814 SUPPORT PASTRY SLIDE RH
$14.00
W0029818 BEARING PAD
$19.85
W0029820 EPS FZ AIR STOPPER
$5.00
W0029844 TUBE CORRUGATE SD
$4.50
W0029903 GEAR
W0029909 VALVE INLET 1 WAY
W0029911 COVER SCREW SNAPED
$4.50
W0029996 MAT DOOR BIN FLEX 1/2 TF70
W0030008 COVER LID SINGLE VALVE
$115.05
W0030040 I&W INSTALLATION KIT BF MD RF
W0030100 POWERCORD INVERTER REF AU/NZ
$25.00
W0030112 HEATER TUBE DRAIN PAN SD
$91.30
W0030113 SPACER 3 TURN HEATER
$4.50
W0030182 DRAIN PAN & HEATER TUBE ASY
$41.25
W0030296 WESTINGHOUSE FRIDGE DISPLAY & I&W INTL ASSY PCB-5200/5260/5360/606
W0030629 COVER WATER TANK BF/MD ASSY
W0087406 SCREW-HINGE/CAM-BTM ETM3600WB
$4.50
W0087409 SCREW EVAP COVER 8 X 1/2
$4.00
W0087750 WASHER SLINGER NYLON
W0087794 SCOOP ICE
W0088556 SWITCH PUSH I&W LEVER
W0096155 ICE MAKER ASSY (FLEX ARM)
W0147542 BASE COMPRESSOR 60W
$43.55
W0147553 SHAFT ROLLER
W0154107 HARNESS-ASSY M/FLOW BF WEST
W0274129 GASKET FC MD90
W0274139 DOOR SPARE FC L+ R WHE6060SA-D
W0274142 ROLLER FIXED FOOT ASSY
$10.60
W0274872 PCBA # LED CLUSTEER GALGA
$23.20
W0275431 SCREW 6X20 SELF TAPPING
$4.50
W0275432 LEVER DISPENSER WH
W0275438 WESTINGHOUSE FRIDGE INVERTER PCB 808364715
W0275464 GASKET FRZ MD90
W0275531 MULTIFLOW ASSY MD90 WH
W0275532 DRAWER FRONT MD90 WH ASSY
W0275538 BIN ICE AIM BF ELUX
W0275540 PCBA PROGRAMMED ERF2003 15W
W0275543 DRAWER FZR MID ASY 90 WH
$90.20
W0275544 EXTENSION SLIDE ASSY LH 300MM
W0275545 EXTENSION SLIDE ASSY RH 300MM
W0275546 HEATER RAD DEF R600 240V MD90W
W0275548 LENS COVER BLUE ASSY
$15.40
W0275556 COMPRESSOR JAIX VNX1113Y
W0275557 ROLLER FOOT
$5.50
W0275560 TANK & WATERLINE ASSY WHE5260
$140.00
W0275563 SHAFT TELESCOPIC RAIL MD90
W0275579 TUBE IM OVERMOLD INSERT
$9.65
W0275605 EVAPORATOR FF MD90
$89.05
W0275612 CLAMP COMPRESSOR SINGLE
$4.50
W0275624 BIN DOOR WITH FINGER MD90 ASSY
W0275626 SHELF FC MD90W
$88.55
W0275627 DRAWER PASTRY BODY MD 90
$41.00
W0275628 DRAWER FZR FR UPR ASY 90 WH
$64.00
W0275629 DRAWER FZR FR MID ASY 90 WH AR
$68.00
W0275635 BIN DOOR FC SHAL MD90 HOTFO PE
W0275642 DRAWER LOWER BODY FZR MD90
$60.00
W0275643 TRAY EVAP DRAIN MD90W
$14.95
W0275644 EPS EVAPORATOR INSERT MD 90
W0275654 DRAWER CRISPER BODY MD90
$91.35
W0275657 COVER CRISPER ASSY MD90 WH
W0275664 COVER EVAPORATOR ASSY MD90
W0275674 BOTTLE RACK 90
$88.55
W0281672 DOOR SPARE FZ WHE6060SA-D
W0283247 BASE COMPRESSOR (INC ROLLERS)
$43.55
W0283341 DRAIN PAN MD & HEATER TUBE ASY
$46.00
W0283362 SEAL FOAM EPDM MD 90
W0363130 HARNESS - ASSY SENSOR DEFROST
