WTB3100WB-XAU — 934000138 00
WESTINGHOUSE — Fridge

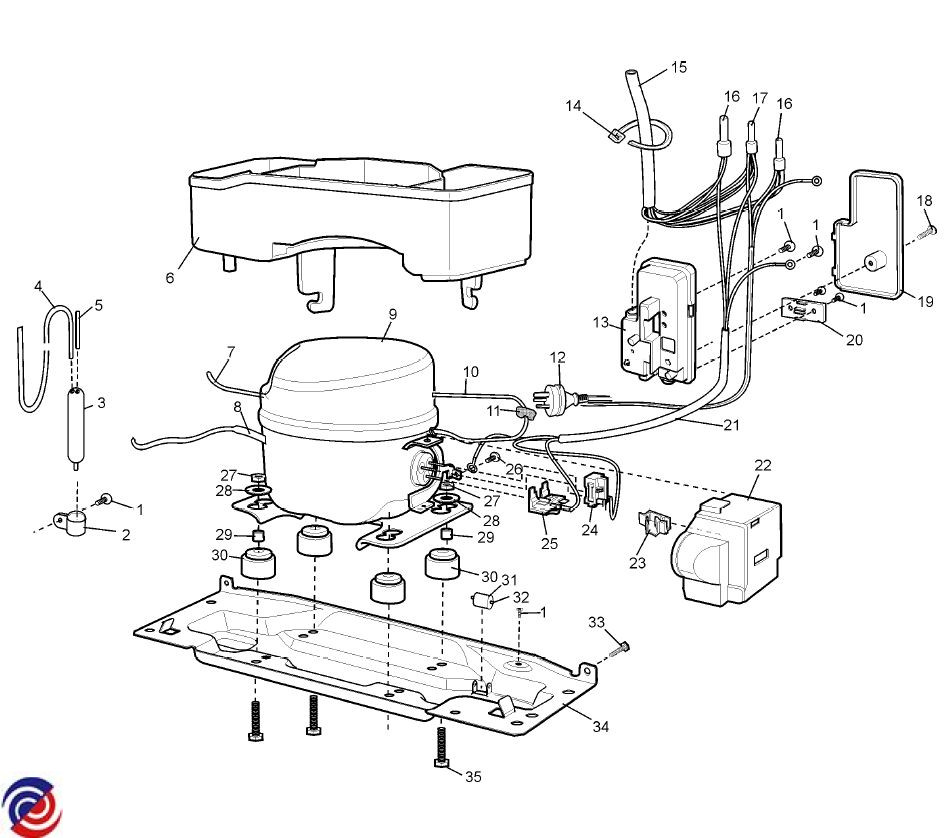

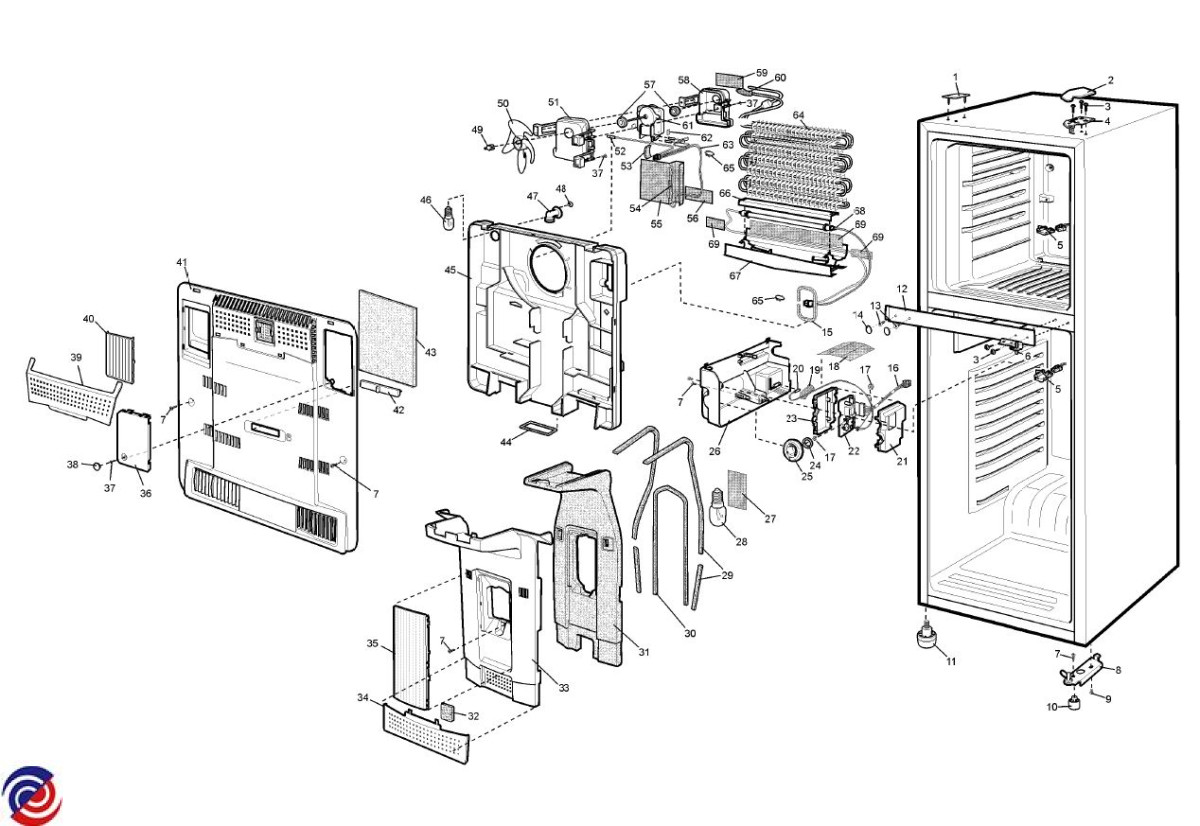

Parts for WTB3100WB-XAU
W0032819 BOARD ASSY MAIN
W0032846 SHELF ASSY FC
$175.00
W0034671 TRAY ICE CUBE
W0084747 TAPE 3M ALUM FOIL 35M RL 50MM
W0012524 SCREW M6 X 10MM HEX TT W/HD SS
$4.50
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0031940 HINGE ASSY TOP
$33.00
W0032749 LEG ADJUSTABLE
W0032754 RELAY WIRE ASSY WTB2300WB-XAU
$33.00
W0032843 TRAY ICE CUBE
$30.00
W0033032 R-DEO-LOUVER WTB2000WA-XAU
$29.70
W0033034 COVER LOUVRE F- DEO
$29.00
W0033043 F- LOUVER WTB3100PB-XAU
$30.80
W0033156 SLIDE HUMIDITY CONTROL
$12.90
W0033306 HEATER SUPPORT R600A
$44.00
W0033317 RAIL SHELF FZR LH
$14.30
W0033325 STOPPER DOOR
$8.60
W0033332 SCREW HINGE CENTRE WTB2800PA
$4.00
W0033674 EVAPORATOR R600A
$215.60
W0033835 HEATER COVER R600A
$29.70
W0034114 SWITCH DOOR
$15.40
W0034162 THERMISTOR
W0034166 COVER
$49.60
W0034174 FAN MOTOR WTB3100WA-XAU
W0034201 STARTER DEVICE PTC
$29.05
W0034672 PAN DRAIN
$24.90
W0034679 BIN FZR
$50.00
W0044125 NUT M6 HEX ZN
W0047463 SCREW PAN HEAD
W0047651 SCREW #10 X 5/8' PHI PAN HD
W0064660 SCREW NO 6 T25 X 3/8 C/S S/S
W0065404 SCREW M5 X 16MM SS
W0079067 DAMPER NOISE-EVAPORATOR RS652M
W0084342 TAPE (9MM 3M TAPE)
W0084558 DAMPER NOISE
W0087402 SCREW 8/32 X 3/8 ETM3600WB
W0096321 CLIP-DRYER PLASTIC HEYCO #3330
W0157510 HINGE LOWER ASSY
W0157511 HINGE CENTRE
$33.00
W0157936 SHELF ASSY SPLIT FC
$134.90
W0160429 PLATE CENTRE ASSY
W0160448 DOOR FZR WTB3100WA-XAU
W0160461 DOOR ASSY FIP FC WHT
W0160468 DRYER ASS'Y
W0160474 BASE PLATE COMPRESSOR
W0160476 FUSE ASSY
$34.95
W0160481 HEATER DEFROST R600A
$79.95
W0160522 F DOOR GASKET WTB3100WA-XAU
W0160523 R DOOR GASKET WTB3100WA-XAU
W0160576 LID CRISPER WITH HUMID CONTROL
W0160577 SHELF FZR
$145.05
W0160579 HARNESS RC-BOX
W0160580 LEAD EV COVER STB31000WA-XAU
W0163201 COVER TOP HINGE
W0163202 COVER EVAP WTB3100WA-XAU
W0163205 COVER LAMP LGE
$32.00
W0163206 COVER LAMP FZR
W0163209 COVER F-LOUVRE
W0163210 RC-BOX COVER WTB2000WA-XAU
W0163213 COVER HINGE HOLE LH WHT
W0163223 DOOR DELI BIN
W0163246 LEG NON ADJUSTABLE
W0163597 R-LOUVER-L WTB3100WA-XAU
W0163900 KNOB CONTROL
$15.40
W0163902 F-CONTROL SLIDE KNOB WTB2000WA
W0163906 KNOB ICE CUBE TRAY
W0166010 L-BAND C EQE6007SB
W0166011 FAN CLAMP WTB2000WA-XAU
W0166015 HOLDER TERMINAL BOX
$9.90
W0166016 MOTOR CUSHION WTB2000WA-XAU
W0166018 FAN MOTOR HOLDER B
W0166019 FAN MOTOR HOLDER A
W0166081 RAIL SHELF CENTRE
W0166083 RAIL SHELF RIGHT
W0166107 BOLT COMPRESSOR
W0166110 SCREW HINGE TOP WTB2800PA
W0166111 WASHER
$4.50
W0166429 SPRING ICE CUBE TRAY
W0166438 BEARING NYLON BEARING 2
W0166439 BEARING NYLON BEARING 3
$14.30
W0166447 BLADE FAN
W0167092 TERMINAL BOX WTB2000WA-XAU
W0167124 CAP SCREW LOUVRE
W0167126 CAP BEARING
W0167127 COVER SCREW WTB2000PA-XAU
$12.95
W0167129 CLIP BAG
W0167130 COMPRESSOR EMY46CLP R600A
$308.00
W0167137 COVER TERMINAL WTM2000WA-XAU
W0167138 SLEEVE WIRING
$16.50
W0167140 HOLDER BOARD A
W0167141 HOLDER BOARD B
W0167404 DEODORISER WTB2000WA-XAU
W0167408 R-LOUVRE-L DUCT
W0168092 GASKET DAMPER N480FF
W0168737 SP-BUTYL H EQE6007SB
W0169165 CHRG PIPE HC S EQE6007SB
W0169187 RING O KNOB
W0169956 SOURCE CORD WTB2000PA-XAU
W0169965 SOLDERLESS TERM. B EQE6007SB
W0169966 SOLDERLESS TERM. A EQE6007SB
W0170241 THERMISTOR DEFROST
$34.90
W0170256 LAMP 15W SES BLUE
$19.00
W0170257 LAMP 25W SES BLUE WTB20000WA
W0171274 HALF POCKET WTB2000WA-XAU
W0171280 CAN POCKET WTB3100WA-XAU
W0171282 FREEZER POCKET WTB3100WA-XAU
W0171283 BOTTLE POCKET WTB3100WA-XAU
W0171285 DAIRY LID WTB3100WA-XAU
W0171287 BIN DAIRY
W0171289 HALF POCKET L WTB3100WA-XAU
W0171297 TRAY EGG
W0171299 HOLDER BOTTLE WHT
$15.95
W0171313 FRESH CASE WTB3100WA-XAU
W0171317 VEGETABLE CASE WTB3100WA-XAU
W0171322 BIN ICE
$31.00
