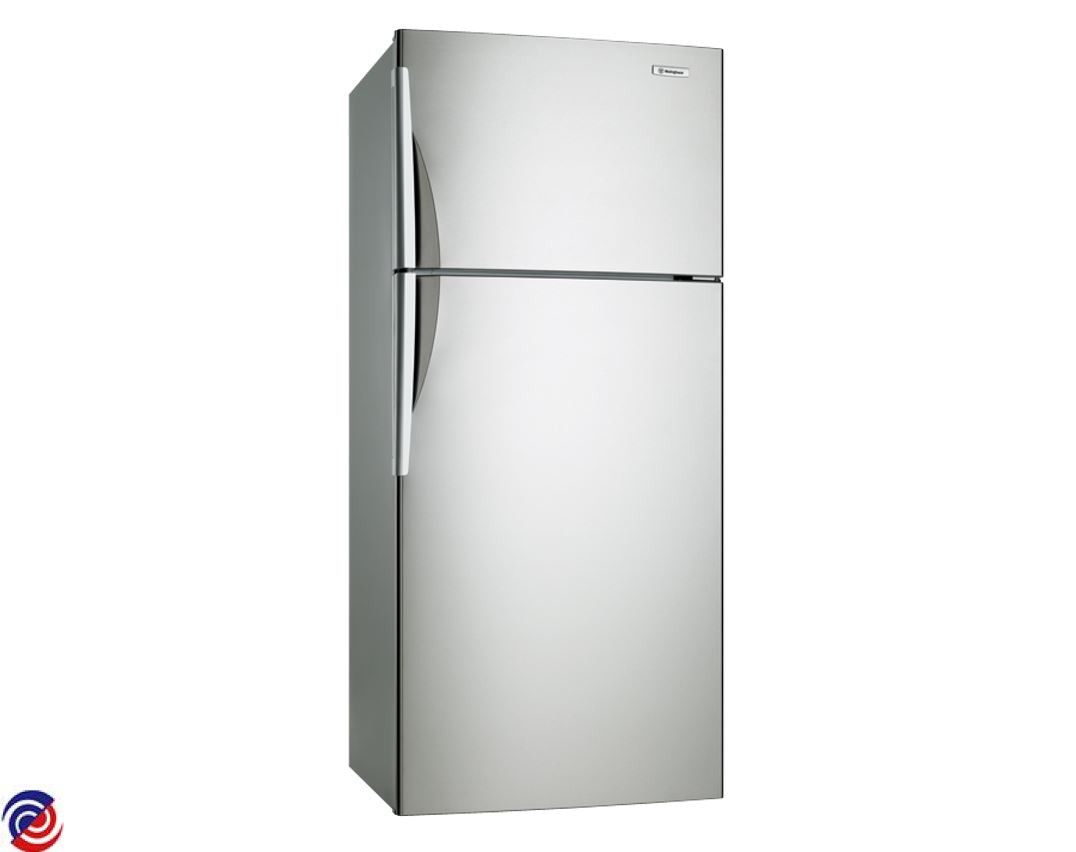

WTE4200SB
WESTINGHOUSE — Fridge

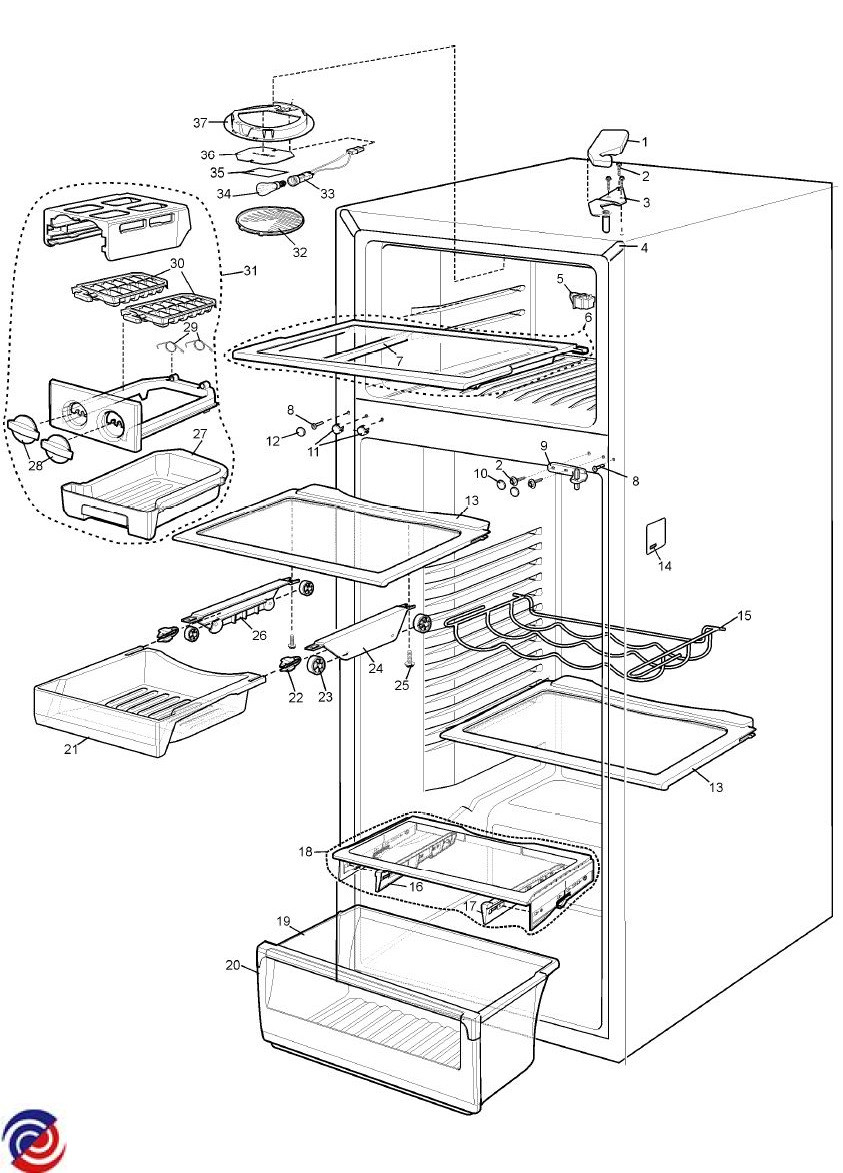

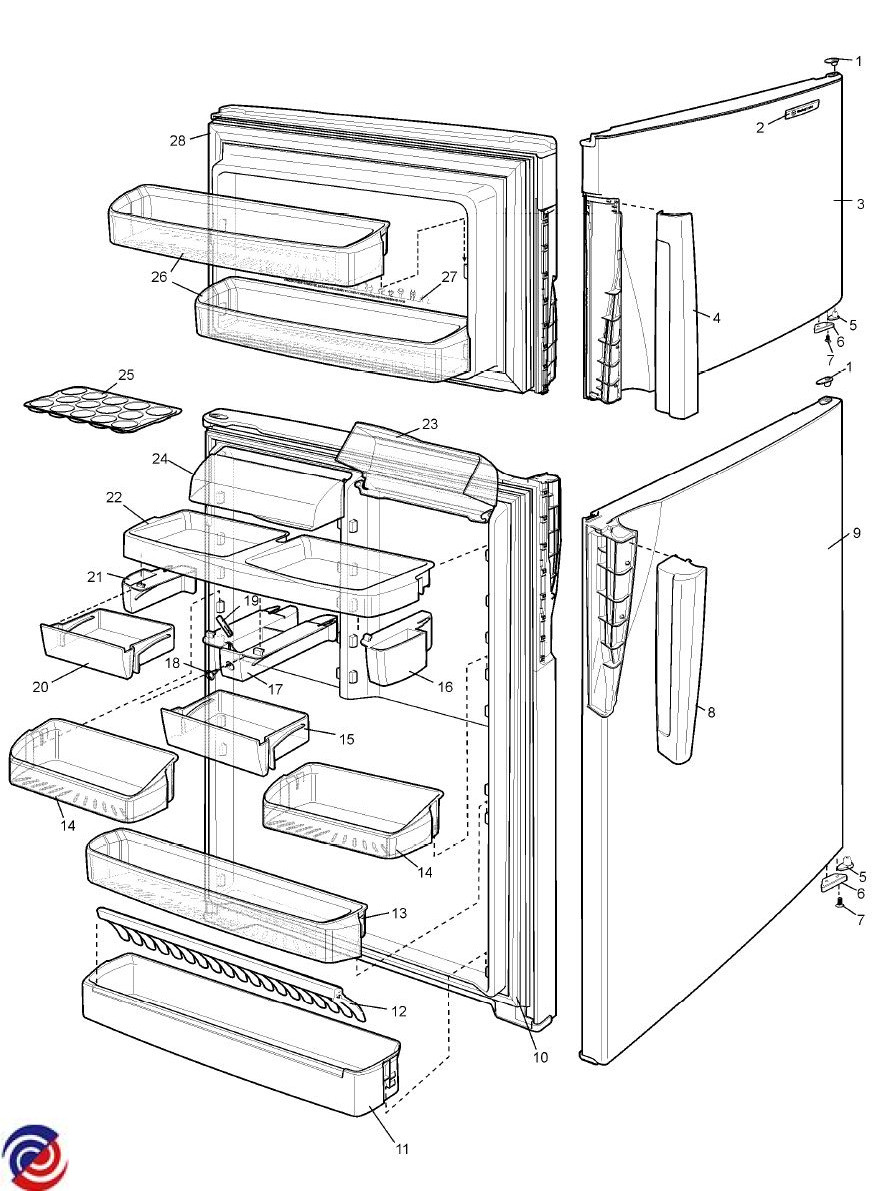

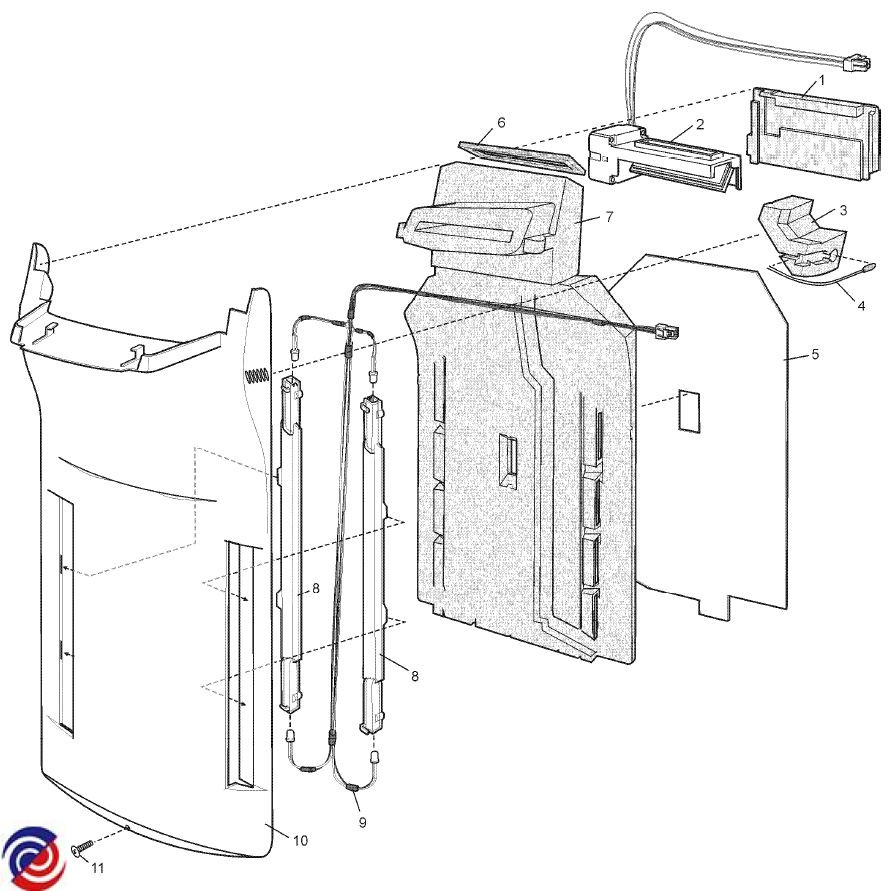

Parts for WTE4200SB
W0018091 BIN FULL WIDTH
W0018094 BIN DOOR FZR
$51.00
.JPG)
W0018097 BIN HALF WIDTH
W0018107 LENS LIGHT
W0018128 BIN DELI DEEP
W0018222 FUSE THERMAL ASSY
W0018264 SHELF ASSY FZR
W0018281 FACIA ASSY CRISPER
W0018395 COVER HANDLE RH TOP LH BOT
$30.00
W0018396 COVER HANDLE RH BOT LH TOP
$45.85
W0019131 SCREW COUNTER SUNK THIMBLE
$4.50
W0034671 TRAY ICE CUBE
.JPG)
W0083263 STOP DOOR
.JPG)
W0085292 WESTINGHOUSE ELECTROLUX FRIDGE DEFROST HEATER ELEMENT
W0085297 RELAY PTC STARTER
$55.00
.JPG)
W0085600 CAP LEG
$12.90
W0085609 LEG STABILISING
W0086077 RUNNER RH
W0086083 BAFFLE KIT MOTORISED
W0086637 HOSE DRAIN (SLIT 130MM)
$11.90
.JPG)
W0086638 BLADE FAN
.JPG)
W0086775 SWITCH LAMP
W0086833 WESTINGHOUSE FRIDGE DOOR BOTTOM HINGE PLATE R/H
W0086834 HINGE PLATE BOT LH BLACK ASSY
$34.50
W0086839 PAN DRAIN RJ422V
W0087161 TRAY EGG
W0087213 HINGE TOP RH
W0087214 HINGE TOP LH
.JPG)
W0087327 THERMOSTAT DEFROST TERM
W0087464 ROLLER REAR GREY
W0087741 LAMP 25W SES BLUE 240V E14
W0087767 WESTINGHOUSE FRIDGE REAR CRISPER BIN 590Wx350Dx263
W0088144 BADGE WESTINGHOUSE
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0018042 BRACKET FAN MOTOR
$7.00
W0018049 CLIP SELF ADHESIVE
$9.00
W0018081 SHROUD FAN MOULDED RJ393V
W0018126 RUNNER LH
W0018166 GROMMET FAN MOTOR
$16.45
W0018170 GROMMET COMPRESSOR
W0018192 DRAWER UTILITY RH
$76.90
W0018232 COVER HINGE RH ETE3900SA
$4.00
W0018233 COVER HINGE LH
$12.65
W0018254 CAP CORNER GREY SYD1212A
$23.80
W0079509 SPACER RJ505EA
W0081199 TIE CABLE 140MM LONG
W0081263 PIN COMPRESSOR MTG RS652M*6
W0082523 RIVET
W0082722 FOAM TAPE RJ393V
W0083235 CLIP-HEATER-ALUMINIUM BJ414Q
W0083869 PLUG DRAIN WHT
W0084491 SEAL BYPASS PLASTIC N410F
W0084558 DAMPER NOISE
W0084619 STICKER MAX 25 WATTS N280J
W0084749 CLAMP-CORD BJ385T
W0085299 BOX TERMINAL
W0085300 TERMINAL COVER RP342
W0085376 AIR CURTAIN RJ393V
W0085414 EPS CONTROL DEL AIR RJ393V
W0085415 EPS HOUSING CONTROL REAR RJ393
W0085461 KNOB LOCK
W0085462 LOCK LATCH
W0085497 SHELF FC 599.97MM X 386.90MM
W0085536 DOOR DAIRY RH RJ393V
W0085538 DOOR DAIRY LH RJ393V
W0085580 SKID CRISPER DELI BIN RJ393V
W0085599 SPACER ROLLER STRIKESIDE RJ393
W0085602 HARNESS FEATURE LIGHTING RJ393
W0085630 SEALING MF RJ393V
W0085634 HOUSING LIGHT RJ393V
W0085640 LAMPHOLDER ASSY RJ393V
W0085654 ROLLER CRISPER LID
W0085702 ROLLER ADJUSTABLE RJ393V
W0085853 SCREW NO 8 X 1/2 PAN HD RJ393V
W0085866 LAMPHOLDER & HARNESS RJ393V
W0085947 PLUG SCREW
$3.90
W0086004 SENSOR INSULATION
W0086011 BIN BOTTLE RJ393V
W0086014 FINGERS BOTTLE
W0086049 SENSOR MOUNT EPS RJ393V
W0086053 THIMBLE FILLER ASSY CLOSED
W0086056 THIMBLE CAM ASSY CLOSED RJ393V
W0086078 RUNNER CENTRE
$55.00
W0086079 SHIELD LIGHT
$6.60
W0086339 SCREW M4 X 8 MUSH RJ393V
W0086441 GASKET DEL TOP N280J
W0086579 TAPE FOAM SEALING SBM3800MA
W0086608 CORD SERVICE INSULATED
W0086769 EVAPORATOR ASSY
W0086996 SHIELD LAMP
W0087023 HOUSING CONTROL TOP
W0087025 AIR CURTAIN
W0087026 AIR CURTAIN LID
W0087030 BIN UTILITY LH 690
W0087175 GASKET DELIVERY FRONT
W0087189 LENS LIGHT FT527SA
W0087190 OVERLOAD T0366 GVT44
W0087311 HARNESS FEATURE LIGHTING
$32.90
W0087325 CAPAC 4*0UF 400V WIRED CLIP
W0087399 MOTOR FAN EVAP 5W ROHS ETM4407
W0087402 SCREW 8/32 X 3/8 ETM3600WB
W0087403 CLIP MOUNTING COMPRESSOR
W0087405 SCREW 12/14 16MM ETM3600WB
W0087406 SCREW-HINGE/CAM-BTM ETM3600WB
$4.50
W0087407 SCREW 8/32 X 1/2THREAD FORMING
W0087408 SCREW NO8 X 3/4 PAN HD ETM3600
W0087409 SCREW EVAP COVER 8 X 1/2
$4.00
W0087410 SCREW DELI RUNNER RJ393V
W0087411 SCREW HINGE CENTRE
$4.50
W0087412 SCREW ETM3600WB
W0087416 SCREW 8 X 1/2 T/F ETM3600WB
W0087417 NUT ETM3600WB
W0087422 LOCK WASHER ESE6108WA
W0087496 HINGE DOOR CENTRE GREY
W0087497 CAP SCREW GREY
W0087504 CAP SNAP ETE3900SA
W0087520 WINE RACK BRIGHT CHROME ETM420
W0087593 BASE PLATE COMP ASSY STM4200W
W0087642 GASKET DOOR FZR
W0087644 GASKET DOOR FC
W0087719 HOUSING CONTROL REAR RJ393V
W0087721 COVER EVAP WTM4200PA
W0087731 HEAT SHIELD EVAP COVER
W0087735 TROUGH DRAIN WTM4200PA
W0087769 COM 134A GTT66 ELECTROLUX
W0087780 LID CRISPER ASSY WITH RAILS
W0087822 SHAFT ROLLER
$7.00
W0087874 DISPLAY CONTROL WBE4300SB
W0087876 DOOR ASSY FIP FC LH SS WTE420
W0087877 DOOR ASSY FIP FZR LH SS WTE420
W0087881 DOOR ASSY FIP FC RH SS WTE420
W0087883 DOOR ASSY FIP FZR RH SS WTE420
W0087931 CTRL BRD/BOX BUZZER ASSY
W0087962 TWIST & SERVE CARRIAGE ASSY
W0088011 COVER EVAP ASSY WTE4200SB
W0088013 INSULATION EVAP COVER WTE4200S
W0088045 RUNNER DELI DEEP RH
W0088046 RUNNER DELI DEEP LH RJ443V
W0088055 BIN DAIRY
$54.95
W0134832 TAPE-FOAM SEAL18X4 14M/RLL.
W0163904 KNOB ICE B6565WTB2800WA-XAU
W0166429 SPRING ICE CUBE TRAY
W0171308 ICE CUBE BOX WTB2800WA-XAU
